Overview
- Power Options:ULTRA-LOW
- Operating Voltage Min (V):1.8
- Inputs and I/O Pins:64
- Registers:64
- Macrocells:64
- tPD Min:5ns/7ns

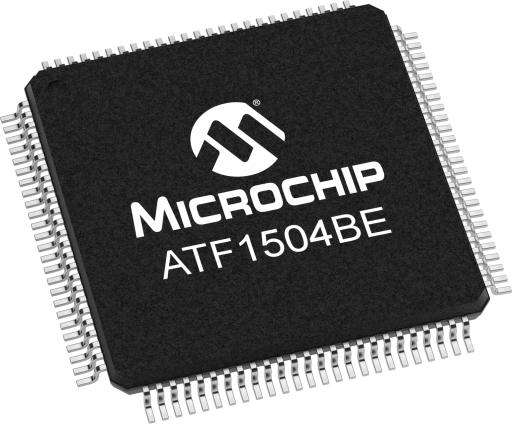

A high-performance, high-density complex programmable logic device (CPLD) that uses Atmel's proven electrically-erasable memory technology. With 64 logic macrocells and up to 68 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. Enhanced routing switch matrices increase usable gate count and the odds of successful pin-locked design modifications.
