  • Supports Frequency Ranges in the 6.2 GHz to 8.3 GHz Ultra-Wideband (UWB)
  • Uses 3db™ Low-Power Secure Ranging Technology
  • Compliant to UWB Regulations of ETSI (EN 302 065-3 V2.1.0) and FCC (Title 47, Part 15)
  • UWB Data Communication up to 1 Mbps
  • Fast SPI Interface (24 MHz) for Communication between the ATA8352 and a Host Microcontroller
  • Single Distance Measurement with 4 cm Resolution
  • Distance Measurement Method Is Secured against Multiple-Attack Scenarios, For Example, Cicada Attack, Early Detect/Late Commit, Preamble Injection
  • Supports Time-Difference-of-Arrival (TDoA) applications with timestamp capturing during TX and RX
  • Tailored for industrial and home appliance applications for localization and secure distance bounding
  • RX and TX Peak Power Allows Coin Cell Battery Applications with an External DC-DC Converter

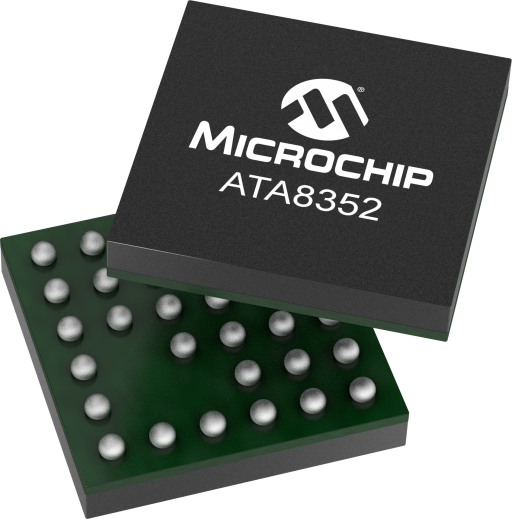

The ATA8352 device is a low-power Ultra-Wide-Band (UWB) transceiver with integrated security layer for secure distance bounding, localization and point-to-point data communication. The ATA8352 device’s digital transmitting circuitry ensures maximum flexibility in the generation of UWB pulse signals.  The transmitter is able to:

  • Generate accurate pulse durations ranging from less than 1 ns to more than 10 ns with controlled envelope shape

  • Generate timestamps during the receive and the transmit mode for Time-Difference-of-Arrival (TDoA) measurements

  • Generate a carrier frequency between 6.2 GHz and 8.3 GHz

  • Ensure ETSI and FCC regulation compliance with programmable transmitted peak output power up to a typical value of 11 dBm

The ATA8352 Front-end (FE) receiver provides an excellent sensitivity to guarantee a superior link budget for the RF communication. The digital base band signal processing unit ensures a highly stable sub nanosecond Time-of-Arrival (ToA) estimation.  The ATA8352 includes a MAC layer for secure distance-bounding measurement and data communication for proximity-based access control. The layer can be configured to ensure different degrees of security while providing a sufficient number of distance measurements to be run in one secure access control session.


NOTE: User Manual is available upon request.
