ATA6563 | Microchip Technology

Overview

  • Bitrate Max [MBits/s]:5
  • Functional Safety Standards:ISO 26262 – Up to ASIL B
  • Operating Voltage [V] Max:5.5
  • Operating Voltage [V] Min:4.5
  • TempRange [°C] Max:150
  • TempRange [°C] Min:-40
  • CAN FD:Yes
Read more
  • Fully ISO 11898-2, ISO 11898-5, ISO 11898-2: 2016 and SAE J2962-2 compliant
  • ISO 26262 FuSa Ready
  • CAN FD - communication speed up to 5Mbit/s
  • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
  • Differential receiver with wide common mode range
  • Direct interfacing to microcontrollers with supply voltages from 3V to 5V
  • Remote wake-up capability via CAN bus - Wake-Up on Pattern (WUP), as Specified in ISO 11898-2: 2016, 3.8 μs Activity Filter Time
  • Functional behavior predictable under all supply conditions
  • Transceiver disengages from the bus when not powered up
  • RXD recessive clamping detection
  • High electrostatic discharge (ESD) handling capability on the bus pins
  • Bus pins protected against transients in automotive environments
  • Transmit data (TXD) dominant time-out function
  • Undervoltage detection on VCC
  • CANH/CANL short-circuit and overtemperature protected
  • AEC-Q100 and AEC-Q006

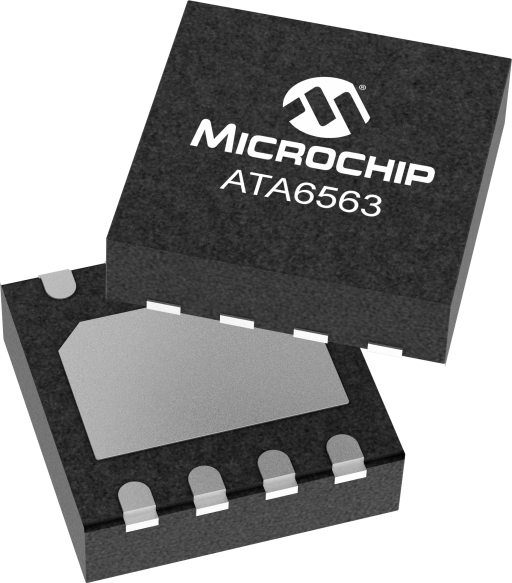

  • Packages: SO8, VDFN8 with wettable flanks (Moisture Sensitivity Level 1)
    • Built-in Safety Features
    • Power-on Reset (POR)
    • Voltage Monitoring (VCC, VIO)
    • Overtemperature Detection
    • RXD Recessive clamp detection
    • TXD Dominant Timeout
