Product Sub-title
Overview
- Program Memory Size (KB):32
- RAM:0
- Data EEPROM (bytes):0
- Pin Count:44
- Operation Voltage Max.(V):6
- Operation Voltage Min.(V):4
- ADC Resolution Max:0
- ADC Channels:0
- Zero Cross Detect:False
- Number of Comparators:0
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:No
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0

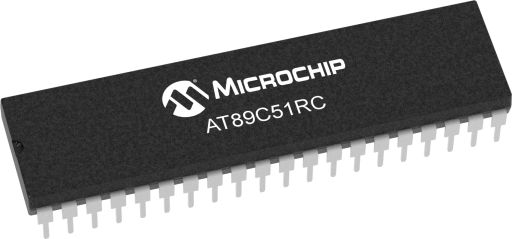

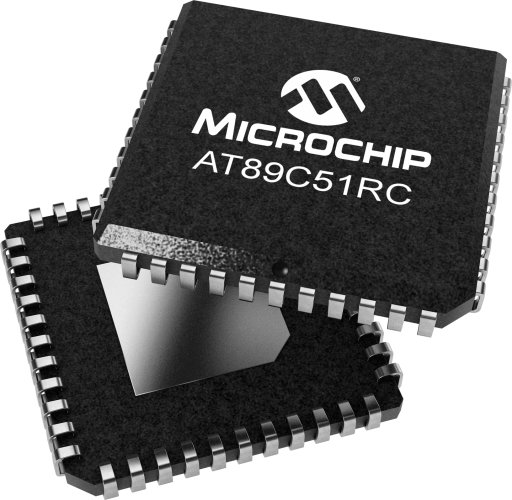

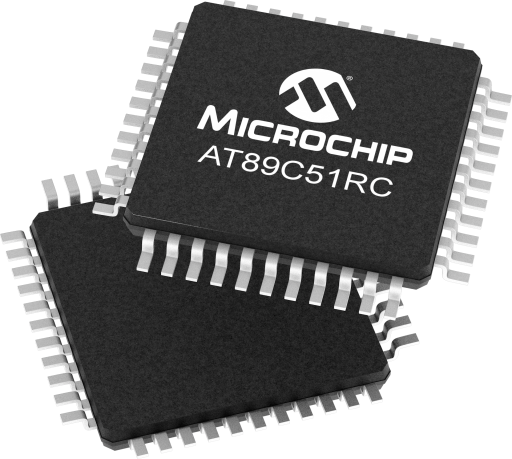

Low-power, high-performance CMOS 8-bit microcontroller with 32KB of flash programmable ROM and 512 bytes of RAM.
It uses Microchip high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pinout. On-chip flash allows the program memory to be user programmed by a conventional nonvolatile memory programmer.
This versatile 8-bit CPU with flash provides a highly-flexible and cost-effective solution for many embedded control applications.
