- Product Type:Analog Resistive Controller
- Measurement Principle:Resistance
- Report Rate (pps):140
- Number of Touches:1
- Power:3.3Vdc ±5%,5.5Vdc ±5%
- Power Modes:2
- Position Resolution:1024x1024
- Interface:USART
- Other Features:4, 5, & 8 wire support
- Voltage Min. (V):2.50
- Voltage Max. (V):5.50

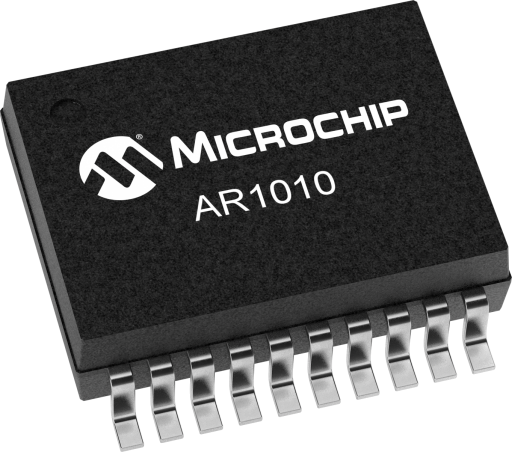

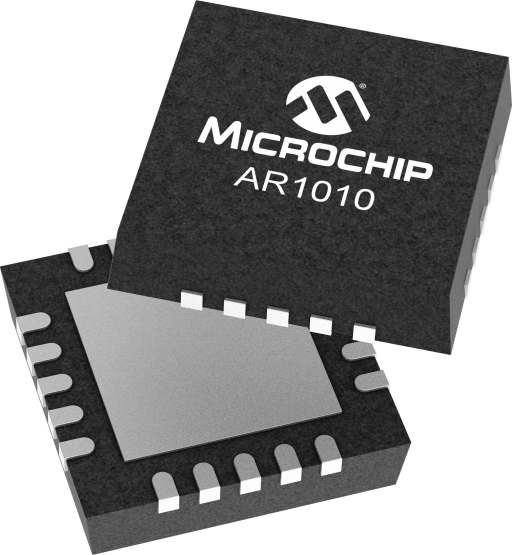

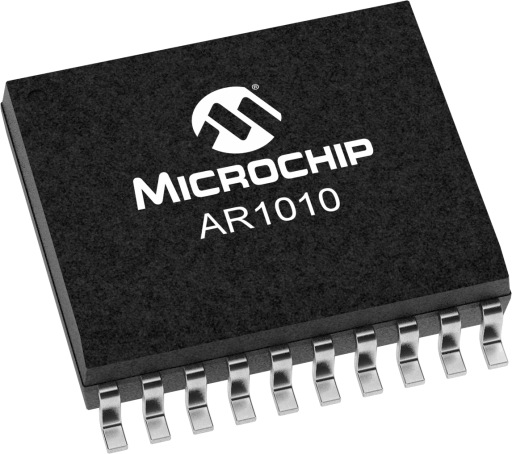

The AR1010 touch screen controller supports UART communication. Please reference the AR1020 touch screen controller for I2C™Compatible and SPI communication.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The mTouch AR1000 Development Kit provides everything designers need to get started using AR1000 resistive controllers for a turn-key, cost effective solution.
|
