1Kb Microwire (3-wire) Serial EEPROM with 16-Bit Organization
Overview
Alternate products
Compare Products
(3)
- Density:1 Kbit (x16)
- Endurance:1,000,000
- Max. Clock Freq.:2 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):2.5
- Page Size (Bytes):16
- Write Protect Scheme:None
- Write Protected:1
- Industry Standard Microwire Serial I/O
- Up to 2 MHz clock compatibility
- 64 x 16-Bit Organization
- Automatic Erase All (ERAL) Before Write All (WRAL)
- Self-Timed Erase and Write Cycles (6 ms max.)
- Read current 100 uA (Typ), 500 uA (Max)
- Write current 500 uA (Typ), 2 mA (Max)
- Standby current 1 uA (Max at -40 to 85°C)
- Software Write-Protection
- More than 1 million erase/write cycles
- Data retention > 200 years
- Grade 1 Temperature Range: -40°C to 125°C
- Qualified for Automotive Applications
- Factory Programming Available

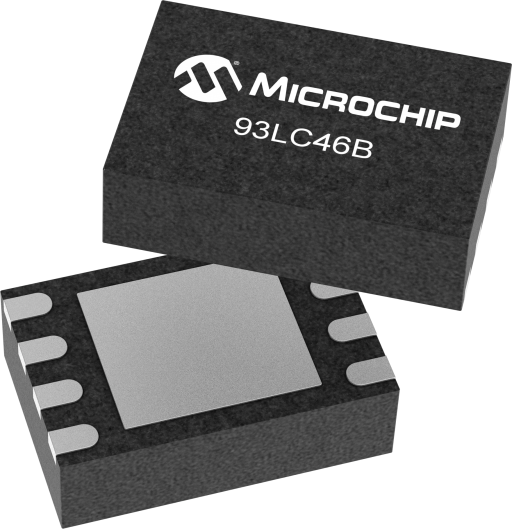

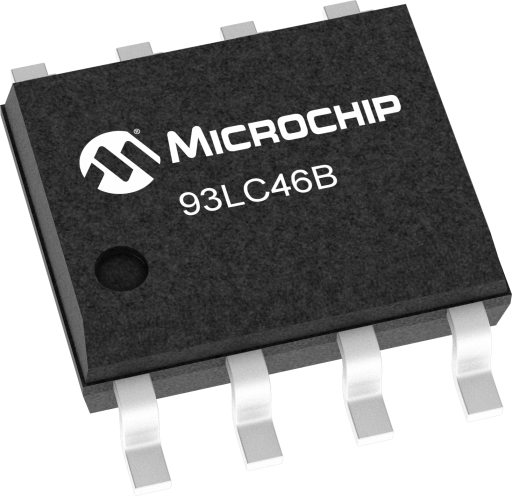

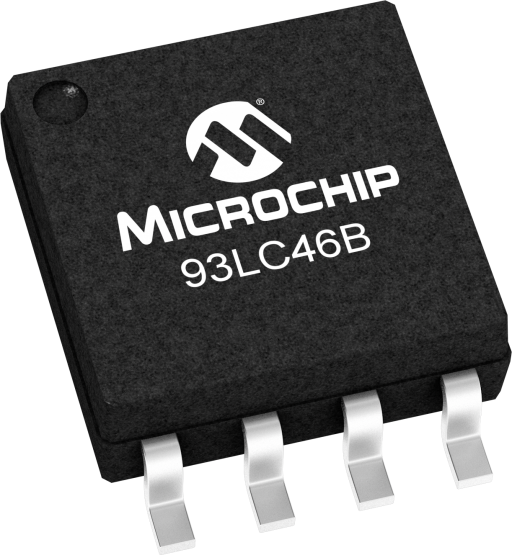

- Available in SOT-23-6, PDIP-8, SOIC-8, MSOP-8, 2x3 DFN-8 and TSSOP-8
The Microchip 93LC46B device is a 1Kb Microwire (3-wire) Serial EEPROM with dedicated 16-bit memory organization and a voltage operation range of 2.5 - 5.5V. Also available are the 93LC46A for dedicated 8-bit memory organization and the 93LC46C for hardware selectable word size using the ORG pin. The 93LC46B is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The device is available in a variety of Pb-free packages including SOT-23, PDIP, SOIC, MSOP, DFN and TSSOP.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
Programmers
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Tools |
|---|
| The Serial EEPROM PIM PICtail™ Modules are a series of boards designed around Microchip Serial EEPROM devices. |
| Designers of Serial EEPROM applications can enjoy the increased productivity, reduced time to market, and rock-solid design that only a well thought out development system can provide. Microchips MPLAB Starter Kit for Serial Memory Products includes everything necessary to quickly develop a robust and reliable Serial EEPROM design while greatly reducing the time required for system integration and hardware/software fine-tuning.
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The Softlog SEC-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2 and ICP2(HC) progra |
| The Softlog SEC4CH-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2GANG programmer. |
| The ICP2(G3) Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® / AVR® MCUs and Serial EEPROMs & Flash ICs. |
| The ICP2(G3)-DP Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs and Serial EEPROMs & Flash ICs. |
