1Kb Microwire (3-wire) Serial EEPROM with Hardware Selectable Word Size
Overview
Alternate products
Compare Products
(3)
- Battery Backup:0
- Density:1 Kbit (x8 or x16)
- Endurance:1,000,000
- Max. Clock Freq.:3 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):1.8
- Page Size (Bytes):0
- Write Protect Scheme:None
- Write Protected:1
- Data Retention:0
- Read Access Speed:
- Industry Standard Microwire Serial I/O
- Up to 3 MHz clock compatibility
- ORG Pin to select word size
- Automatic Erase All (ERAL) Before Write All (WRAL)
- Self-Timed Erase and Write Cycles (6 ms max.)
- Read current 100 uA (Typ), 1 mA (Max)
- Write current 500 uA (Typ), 2 mA (Max)
- Standby current 1 uA (Max at -40 to 85°C)
- Software Write-Protection
- More than 1 million erase/write cycles
- Data retention > 200 years
- Grade 1 Temperature Range: -40°C to 125°C
- Qualified for Automotive Applications
- Factory Programming Available
- Available in PDIP-8, SOIC-8, MSOP-8, 2x3 DFN-8 and TSSOP-8

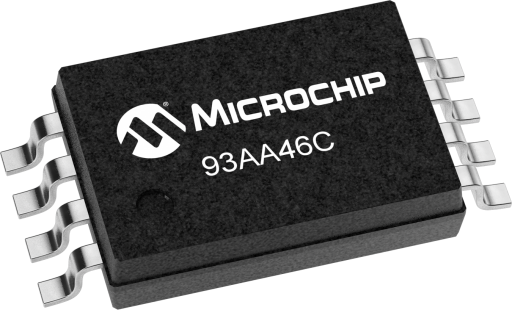

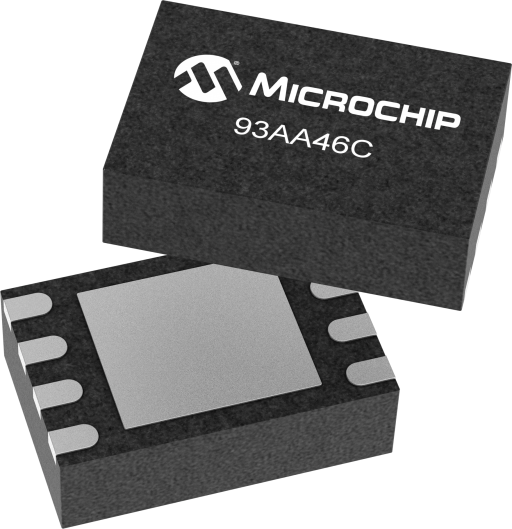

The Microchip 93AA46C device is a 1Kb Microwire (3-wire) Serial EEPROM with hardware selectable word size using the ORG pin and a voltage operation range of 1.8 - 5.5V. Also available are the 93AA46A for dedicated 8-bit memory organization and the 93AA46B for dedicated 16-bit memory organization. The 93AA46C is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The device is available in a variety of Pb-free packages including PDIP, SOIC, MSOP, DFN and TSSOP.
