Status: Not Recommended for new designs

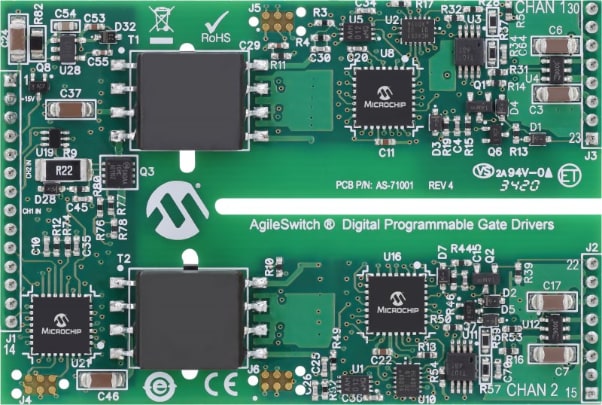

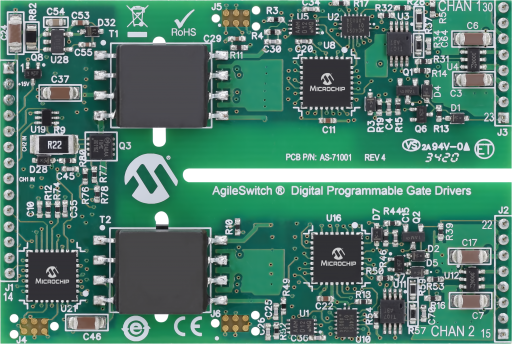

AgileSwitch® High Performance SiC Gate Driver
Overview
- Driver Type:Core Boards
- Usable Device Voltage(V):1700
- Peak Gate Current A (ampere):10
- Output Channels:2
- Gate Output Power W (watt):5
- Primary to Secondary Isolation Voltage Max V (volt):3750
- Temperature Feedback:Yes
- Integrated DC-DC Converter:Yes
- Short-Circuit Protection:Yes
- Short-Circuit Response Time ns (nanosecond):200
- Software Configurable:Yes
- Configurable Parameters:Turn Off
High-Performance SiC Gate Driver Cores are Dual-Channel Gate Driver Cores for 1700V SiC modules. These Gate Driver Cores feature Augmented Switching™ control, robust short circuit protection, and are fully software configurable, including +/- Vgs Gate Voltages.
1700V Modules:
- 2ASC-17A1HPP
Optimized for Electric Vehicles, Auxiliary Power Unit, Charging, Storage and Inverter applications, these Gate Driver Cores are UL compliant for up to 1700V rated modules (and below), can switch up to 150 kHz, and provide up to 7 unique fault and monitoring conditions, including Temperature and High Voltage Monitoring.
These Cores are production qualified to enable rapid time to market. They can also be mated to Module Adapter Boards for rapid evaluation of Module and Gate Driver.
Easily configure and fine-tune the performance of these Gate Drivers using the Intelligent Configuration Tool (ICT) Version 2.0
