512Kb 1.8V SPI Serial EEPROM
Overview
Alternate products
Compare Products
(3)
- Battery Backup:0
- Bus Modes:SPI
- Density:512 Kbit
- Endurance:1,000,000
- Max. Clock Freq.:20 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):1.8
- Page Size (Bytes):128
- Write Protect Scheme:Quarter, Half, Whole Array
- Write Protected:1
- Data Retention:0
- 64K x 8-bit (512 Kbit)
- Supports SPI modes 0 and 3
- Up to 20 MHz clock frequency
- Self-Timed Erase and Write Cycles (6 ms max.)
- Read current: 10 mA (Max) at 20 MHz
- Write current: 5 mA (Max) at 10 MHz
- Standby current: 10 μA (Max) at 5.5 V
- Deep power-down current: 1 μA (Max) at 2.5 V
- Block Write Protection: Protect 1/4, 1/2 or Entire Array
- More than 1 million erase/write cycles
- Data retention > 200 years
- Industrial (I): -40°C to +85°C
- Automotive AECQ-100 Qualified1
- Factory Programming Available

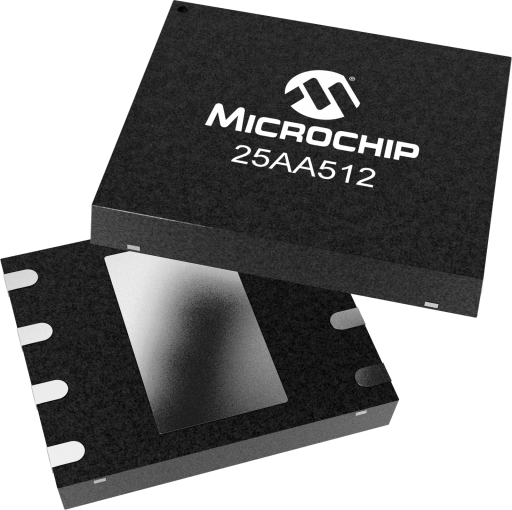

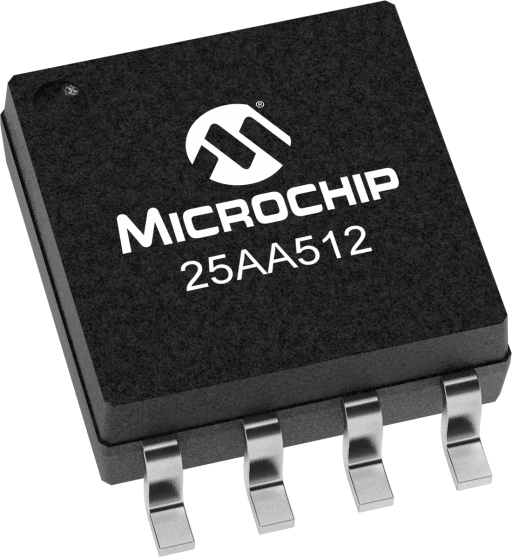

- Available in standard packages including 8-lead PDIP, SOIC and SOIJ and advanced package 8-lead 5x6 DFN
The Microchip 25AA512 is a 512 Kb Serial EEPROM utilizing the
industry standard Serial Peripheral Interface (SPI) compatible serial bus. The
device is organized as one block of 64K x 8-bit and is optimized for use in consumer electronics, industrial, medical,
and automotive applications where reliable and dependable nonvolatile memory
storage is essential. Software write protection allows the user to protect ¼,
½, or the entire memory array. A hardware write protect pin is also provided,
which additionally protects against inadvertent writes to the status register.
The EEPROM is available in a variety of space-saving packaging options.
