2Kb 2.5V SPI Serial EEPROM
Overview
Alternate products
Compare Products
(3)
- Bus Modes:SPI
- Density:2 Kbit
- Endurance:1,000,000
- Max. Clock Freq.:10 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):2.5
- Page Size (Bytes):16
- Write Protect Scheme:Quarter, Half, Whole Array
- Data Retention:200
- 256 x 8-bit (2 Kbit)
- Supports SPI modes 0 and 3
- Up to 10 MHz clock frequency
- Self-Timed Erase and Write Cycles (6 ms max.)
- Read current: 5 mA (Max) at 10 MHz
- Write current: 5 mA (Max) at 10 MHz
- Standby current: 5 μA (Max) at 5.5 V
- Block Write Protection: Protect 1/4, 1/2 or Entire Array
- More than 1 million erase/write cycles
- Data retention > 200 years
- Industrial (I): -40°C to 85°C
- Extended (E): -40°C to +125°C
- Extended+ (H): -40°C to +150°C
- Automotive AECQ-100 Qualified1
- Factory Programming Available
- Available in standard packages including 8-lead PDIP and SOIC, and advanced packages including 8-lead MSOP, 8-lead TSSOP, 8-lead 2x3 DFN, and 6-lead SOT-23

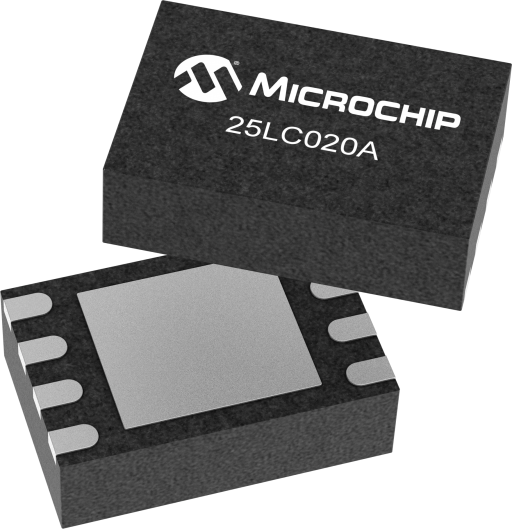

The Microchip 25LC020A is a 2 Kb Serial EEPROM utilizing the
industry standard Serial Peripheral Interface (SPI) compatible serial bus. The
device is organized as one block of 256 x 8-bit and is optimized for use in consumer electronics, industrial, medical,
and automotive applications where reliable and dependable nonvolatile memory
storage is essential. Software write protection allows the user to protect ¼,
½, or the entire memory array. A hardware write protect pin is also provided,
which additionally protects against inadvertent writes to the status register and memory array. The EEPROM is available in a variety of space-saving
packaging options.
