32Kb I2C compatible 2-wire Serial EEPROM with Quarter-Array Write Protection
Overview
- Density:32 Kbit
- Endurance:1,000,000
- Max. Clock Freq.:400 kHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):2.5
- Page Size (Bytes):32
- Write Protect Scheme:Quarter Array
- Single-Supply with Operation down to 2.5V
- Low-Power CMOS Technology:- Read current 400 µA, max.- Standby current 1 µA, max. (I-temp)
- 2-Wire Serial Interface, I2C™ Compatible
- Packages with 3 Address Pins are cascadable upto 8 Devices
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 5 ms, typical
- Self-timed Erase/Write Cycle
- 32-Byte Page Write Buffer
- Hardware Write-protect for 1/4 Array(1800h-1FFFh)
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available

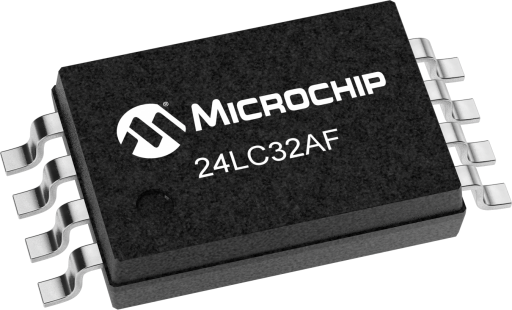

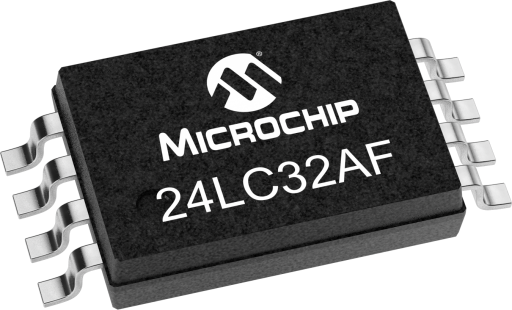

The Microchip Technology Inc. 24LC32AF is a 32Kb I2C™ compatible Serial EEPROM. The device is organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 2.5V, with standby and read currents of only 1 µA and 400 µA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition. The 24LC32AF also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 256 Kbits address space. The 24LC32AF is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, TDFN and MSOP packages. The 24LC32AF is also available in the 5-lead SOT-23 package.
