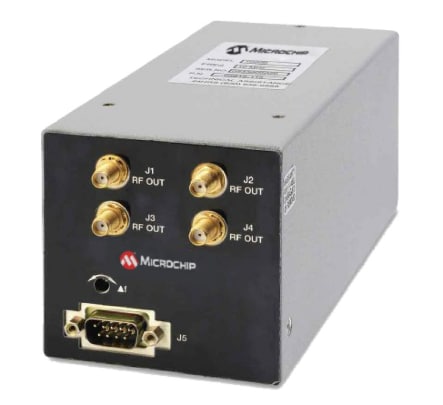

Ultra High Performance Crystal Oscillator
Overview
- Dimensions:166 mm x 76mm x 76 mm
- Supply Voltage:18 to 30 V
- TempRange Max °C (degrees Celsius):55
- TempRange Min °C (degrees Celsius):0
- Short term stability: 0.1s to 100s <2,0E-13 (Ultra High Performance version)
- Low Phase Noise
- High Performance version, -120 dBc at 1 Hz and -160 dBc at 100 kHz
- Ultra High Performance version, -130 dBc at 1 Hz and -160 dBc at 100 kHz
- Low aging, 5.0E-11 per day (typical)
- Four 5 MHz independently buffered outputs
- Fast Warm-Up, 15 Minutes to 2.0E-8
- Linearized Electronic Frequency Control
- Typical tuning range 6E-7
- 0 °C to 55 °C Operating Temperature Range
The 1000C crystal oscillator is Microchip's most stable oscillator with Allan deviation below 2E-13 out to 100 seconds, and phase noise of -120 dBc/Hz at 1Hz offset. The 1000C is the ideal laboratory reference, and is also useful as timing and metrology reference or for low noise radar and radio astronomy applications
