Part Number: VSC5610EV-UN

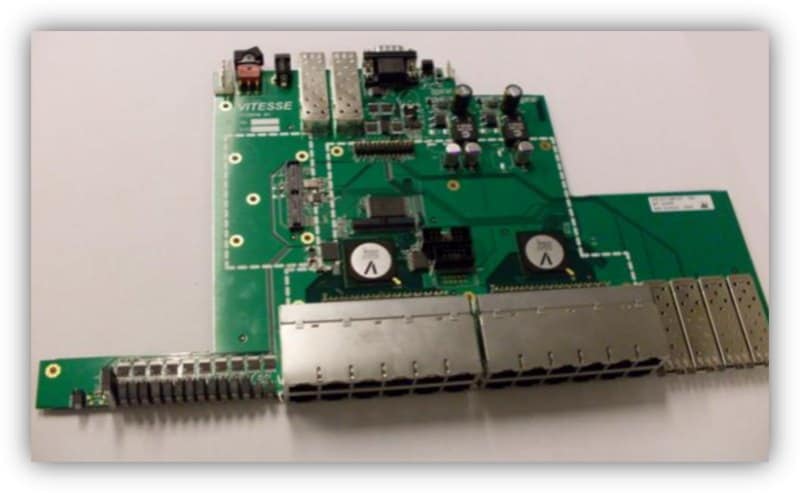

VSC5610EV-UN SPARX-III UNMANAGED EVALUATION BOARD, 24 CU 1 SFP
- Refer to Design Files
Overview
The VSC5610EV-UN ethernet development system can be used to demonstrate the SparX-III unmanaged Ethernet switches and the VSC8512 PHY device
To obtain the VSC5610EV-UN demonstration code v3.11.0 click here
Package Contents
N/A
Documentation
|
Title
|
|||
|---|---|---|---|
| VSC5610EV-UN Reference Design Files | Download |
Software
|
Title
|
Date
|
||
|---|---|---|---|
| VSC6811 Unmanaged Software | 11 Aug 2023 | Link |
Silicon Products
Product |
Title |
Product |
Title |
|---|---|---|---|
| VSC7420 | 10 Port Unmanaged L2 Switch with 8 Cu PHYs | VSC7420 | 10 Port Unmanaged L2 Switch with 8 Cu PHYs |
| VSC7421 | 17 Port Unmanaged L2 Switch with 12 Cu PHYs | VSC7421 | 17 Port Unmanaged L2 Switch with 12 Cu PHYs |
| VSC7422 | 25 Port Unmanaged L2 Switch with 12 Cu Phys | VSC7422 | 25 Port Unmanaged L2 Switch with 12 Cu Phys |
