Part Number: VIDEO-DC-MIPITX

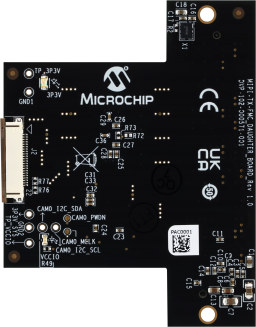

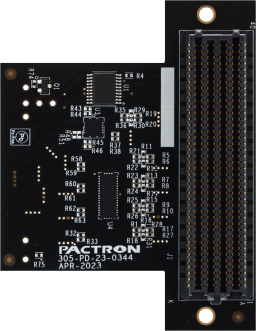

MIPI Transmit FMC Card
Key Features
- Transit 2.5Gbps/lane for 4K60 resolutions
- 1x Vita 57.1 standard HPC FMC connector
- One-byte and two-byte output modes
Overview
Microchip offers an FPGA-based MIPI CSI-2 transmit reference solution with PolarFire and PolarFire SoC FPGAs. It is transceiver-enabled, which upgrades our GPIO-based IP solution to support data rates of up to 2.5Gbps/lane and facilitate 4K video data.
MIPI Transit Solution Block Diagram
The PolarFire® Video and Imaging Kit must be used to work with MIPI Transmit FMC Card.
To run MIPI Transmit FMC Card with PolarFire SoC Video Kit, please reach out to us here.
AN5494 demonstrates how to generate and display MIPI CSI-2 video for the below configurations
- Two-lane design at 800Mbps/lane for transmitting full HD video at 30 fps on a Raspberry Pi
- Four-lane reference design at 2.5Gbps/lane for transmitting 4K video at 120 fps
MIPI Transit FMC Demo Setup
Package Contents
- MIPI Transit FMC Daughter Board
- Flexible Printed Circuit (FPC) Cable, 200 mm: 22 to 15 Pin
- Quickstart Card
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| MIPI CSI-2 Transmitter Application Note | 09 Jan 2025 | Link | Application Notes |
Additional Resources
Licensing
Libero® SoC PolarFire Design Suite offers high productivity with its comprehensive, easy-to-learn, and easy-to-adopt development tools for designing with Microchip’s PolarFire FPGAs. The suite integrates industry standard Synopsys Synplify Pro synthesis and Mentor Graphics ModelSim simulation with best-in-class constraints management and debug capabilities.The PolarFire kit is now supported by a free Libero silver license.
Download the latest Libero SoC PolarFire release from Microchip website. Generate your free silver license at Microchip portal.
