Part Number: TPG100010-G3
SOFTLOG ICP2PORT(G3)-P PORTABLE IN-CIRCUIT PRODUCTION PROGRAMMER
- Designed for ICSP™, JTAG, SWD, UPDI, SPI, QSPI, etc. used by Microchip, Atmel, SST and others
- On-board 32MB flash memory for non-volatile storage of HEX, configuration and serialization files
- Standalone operation
- Counter that limits the number of times a hex file can be programmed
- Three standalone serialization schemes: Sequential, random and user file (1 to 8 bytes, automatic “retlw”)
- Vdd and Vpp overload protection
- Power supply: 3xAA batteries, USB or power adapter
- Programmable Vdd (1.8 to 5.5V) and Vpp (1.8 to 13.5V)
- Programmable delay between Vdd and Vpp (0.1 to 250ms)
- Programmable clock/data speed (500KHz to 10MHz)
- Programmable Vdd source (ICP2PORT(G3) or target)
- Vdd current limit: 100mA (40mA if powered from USB only)
- Prevents damage to the connected microcontroller in case of power ON and power OFF
- Dimensions: 145 x 82 x 28mm
Overview

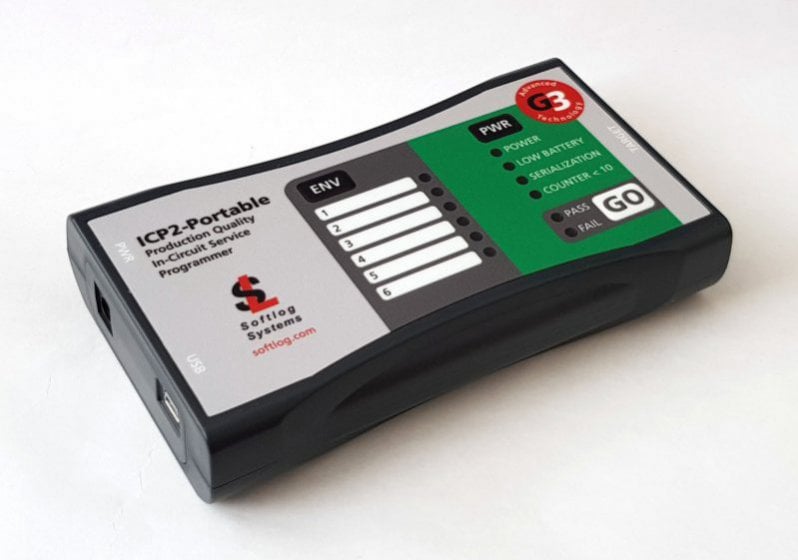

A member of the ICP(G3) family of high-speed, production-grade in-circuit programmers. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field upgrades. ICP2PORT(G3)-P programs Microchip 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs and Serial EEPROMs & Flash ICs. ICP2PORT(G3)-P hardware is designed to support popular programming interfaces (ICSP™, JTAG, SWD, UPDI, SPI, QSPI, etc.)
Package Contents
- Programmer unit
- USB cable (A-mini USB)
- Sub-D 15-pin mating connector
- USB install instructions
- Quick start manual
