Part Number: TO263-5EV-VREG

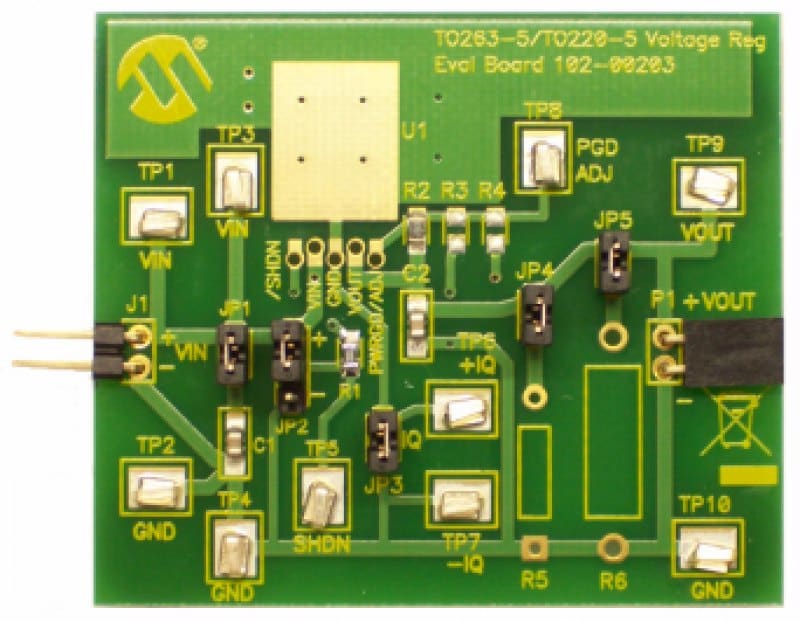

TO220-5 / TO263-5 VOLTAGE REGULATOR EVALUATION BOARD
The TO220-5 / TO263-5 Voltage Regulator Evaluation Board can be broken up into
6 functional blocks. The blocks are:
6 functional blocks. The blocks are:
- Input Capacitance
- Shutdown Control
- Ground Current Measurement
- Voltage Adjust
- Power Good
- Load Resistor
Overview
Package Contents
The TO220-5 / TO263-5 Voltage Regulator Evaluation Board is designed to provide functional evaluation of Microchip Voltage Regulators that utilize the TO220-5 and TO263-5 package. The TO220-5 / TO263-5 Voltage Regulator Evaluation Board does not come with a voltage regulator soldered onto the board. This allows the user to attach the voltage regulator of their choosing to the board and perform quiescent current, ground current, PSRR, and other desired tests.
Documentation
|
Title
|
|||
|---|---|---|---|
| MCP1826/1826S 1000 mA, Low-Voltage, Low Quiescent Current LDO Regulator Data Sheet | Download | ||
| MCP1827/S Data Sheet | Download | ||
| MCP1790/MCP1791 Datasheet | Download | ||
| TO220-5 / TO263-5 Voltage Regulator Evaluation Board User's Guide | Download | ||
| TO220-5 / TO263-5 Voltage Regulator Evaluation Board Gerbers | Download | ||
| 22056b.pdf | Download |
