Part Number: TDGL010

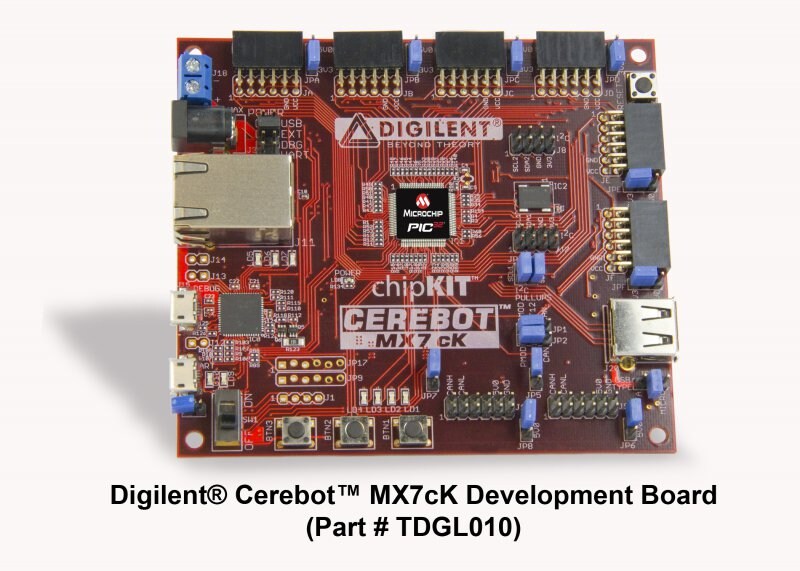

TDGL010 - CHIPKIT PRO MX7 DEVELOPMENT BOARD
- PIC32MX795F512L MCU
- 512K Flash, 128K RAM
- USB 2.0 Full Speed On-The-Go [OTG]
- 10/100 Ethernet
- Two CAN controllers
- 52 I/O pins
- 16 analog inputs
- chipKIT bootloader installed
Overview
The chipKIT™ Pro MX7™ development board is based on the PIC32MX795F512L MCU. It is compatible with Digilent's line of Pmod™ peripheral modules and is suitable for use with the Microchip MPLAB® IDE. This board is also compatible with the chipKIT™ platform's MPIDE development environment. The chipKIT platform and MPIDE are part of a PIC32-based system compatible with many existing Arduino® code examples, reference materials, and other resources.
Includes a built in programmer/debugger compatible with MPLAB. The kit contains everything needed to start developing embedded applications using either the MPLAB IDE or the MPIDE.
This low-priced item is not eligible for academic discount.
Digilent is a trusted Third-Party Tool provider.
