Part Number: TC1016/17EV

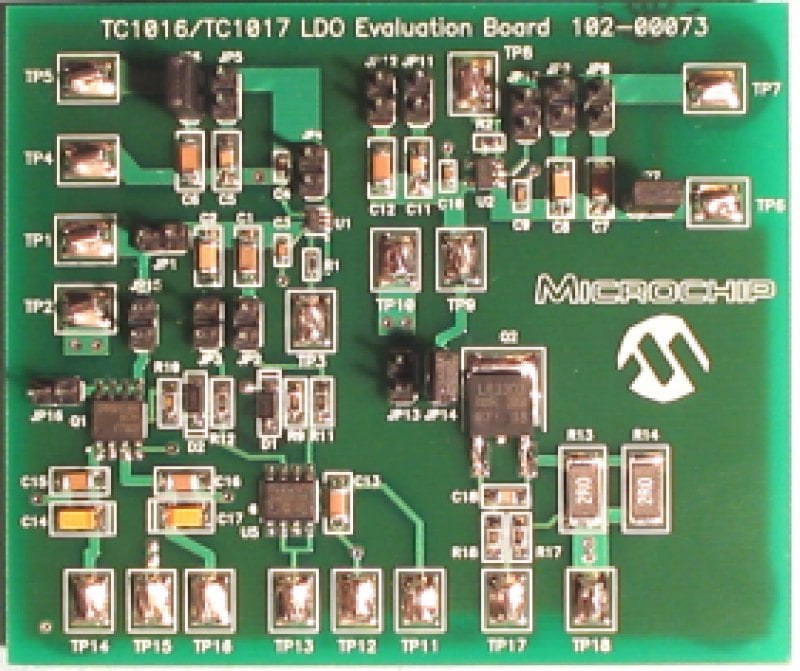

TC1016/17 LDO LINEAR REGULATOR EVALUATION BOARD
- Input Voltage Range: 2.7V to 6.0V
- Additional Input and Output Capacitor Value Selection Capability via Jumpers (4.7 µF and 10 µF values)
- Output Voltage Shutdown via the SHDN Inputs
- Overcurrent Protection (device feature)
- Overtemperature Protection (device feature)
- Line and Load Step Testing Capability
Overview
The TC1016/17 LDO Linear Regulator Evaluation Board allows the user to evaluate Microchip’s 80 mA (TC1016) and 150 mA (TC1017) Low Dropout (LDO) regulators. The evaluation board contains two independent LDO circuits that allow the user to evaluate the TC1016 and TC1017 devices in the 5-pin SC-70 and the 5-pin SOT-23 packages. The evaluation board is populated with 1.8V and 3.0V TC1017 devices. Any of the available output voltage values of the devices (1.2V to 5.0V) can be used on this board. Fixed input and output capacitor values of 1.0 µF are hard wired on the board while alternate values of 4.7 µF and 10 µF can be selected via jumpers. Line and load step circuitry is also provided.
