Part Number: SOM1-MPF500T
Sundance DSP SoM1 PolarFire FPGA System on Module
Features
- 481K Logic elements PolarFire FPGA in a FCG1152 – MPF500-1FCG1152
- 2 chips MT40A1G16 from Micron(stacked 2 x8 8Gb chips) – total 32Gbits of DDR4-1600 (effective data lanes’ speed of DDR4 interface reduced to 1600Mb/s – clock rate maximum 800MHz)
- 512Mbit SPI Flash for bitstream and other code storage, by default, flash will not be soldered
- Flexible clocking IC – SI5338A-B-GM with 50MHz ±20ppm reference oscillator
- Built in FPGA internal oscillator for configuration and other purposes
- B2B Connectors: 4 x 160 Pins from Samtec – ST5-80-1.50-L-D-P-TR
- I/O’s – from Banks; MAX LVDS I/O speed is 1600Mbps
- High speed transceivers; maximum speed is 12.7Gbps
- Input power supply for module
- Separate pins for VCCIO supply
- Flexible clocking scheme.
- Small footprint of 76 x 52 mm.
- Temperature range 0°C to +65°C
- Power IN from 3.3V to 5.5V.
- Max FPGA power consumption is below 14 Watts
- Temperature range 0°C to +65°C
Overview

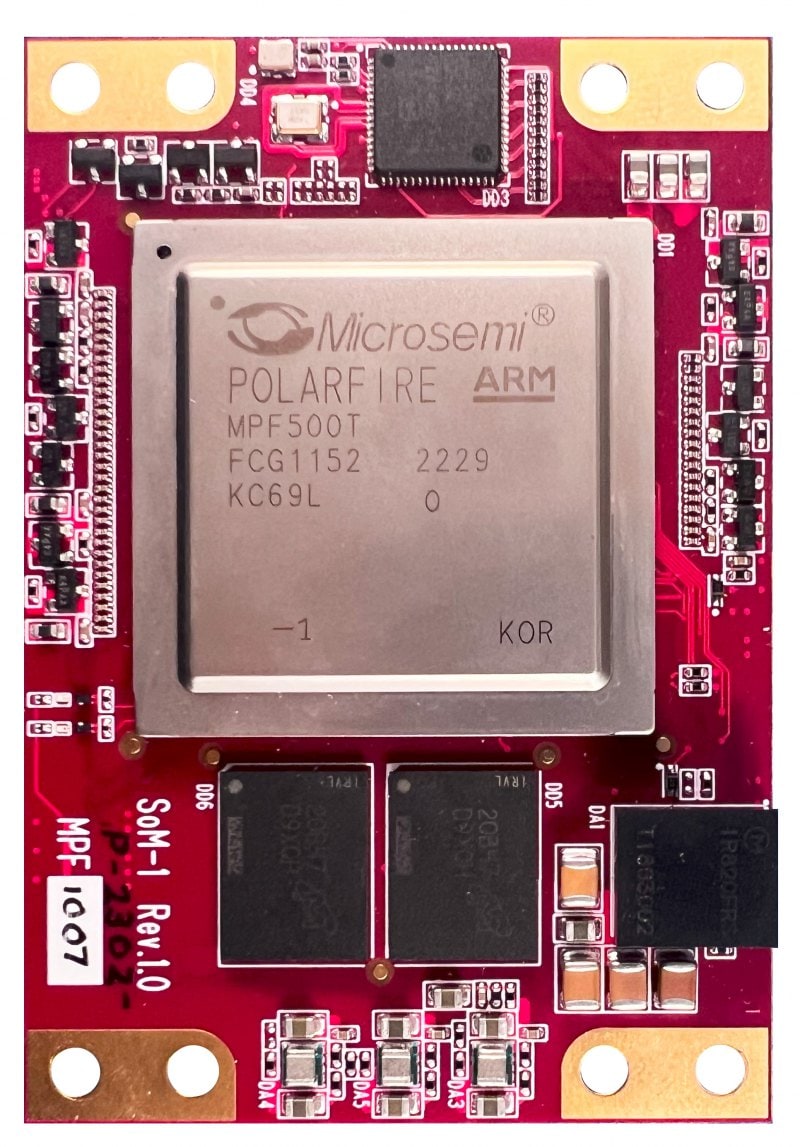

SoM1-MPF500T is a System on Module using the powerful, low power and high-security PolarFire FPGA from Microchip. It is based on the MPF500T-1FCG1152E (or MPF300) FPGA with a small footprint, low power, high security, ample processing resources and many hardcore IPs like JESD204B, RISC-V, etc. With its relatively low cost, it can be suitable for application where cost and low-power and security are important. The module is compatible with some SoMs from Trenz. SOM1 is by default populated with MPF500T-FCVG1152 device but can be optionally built with MPF300T in the same package for reducing cost. With any of the options, the module provides many IOs and 24 (or 16) high-speed transceivers.
Available from Sundance Digital Signal Processing Inc. Please visit Sundance DSP for ordering information.
