Part Number: SOIC14EV

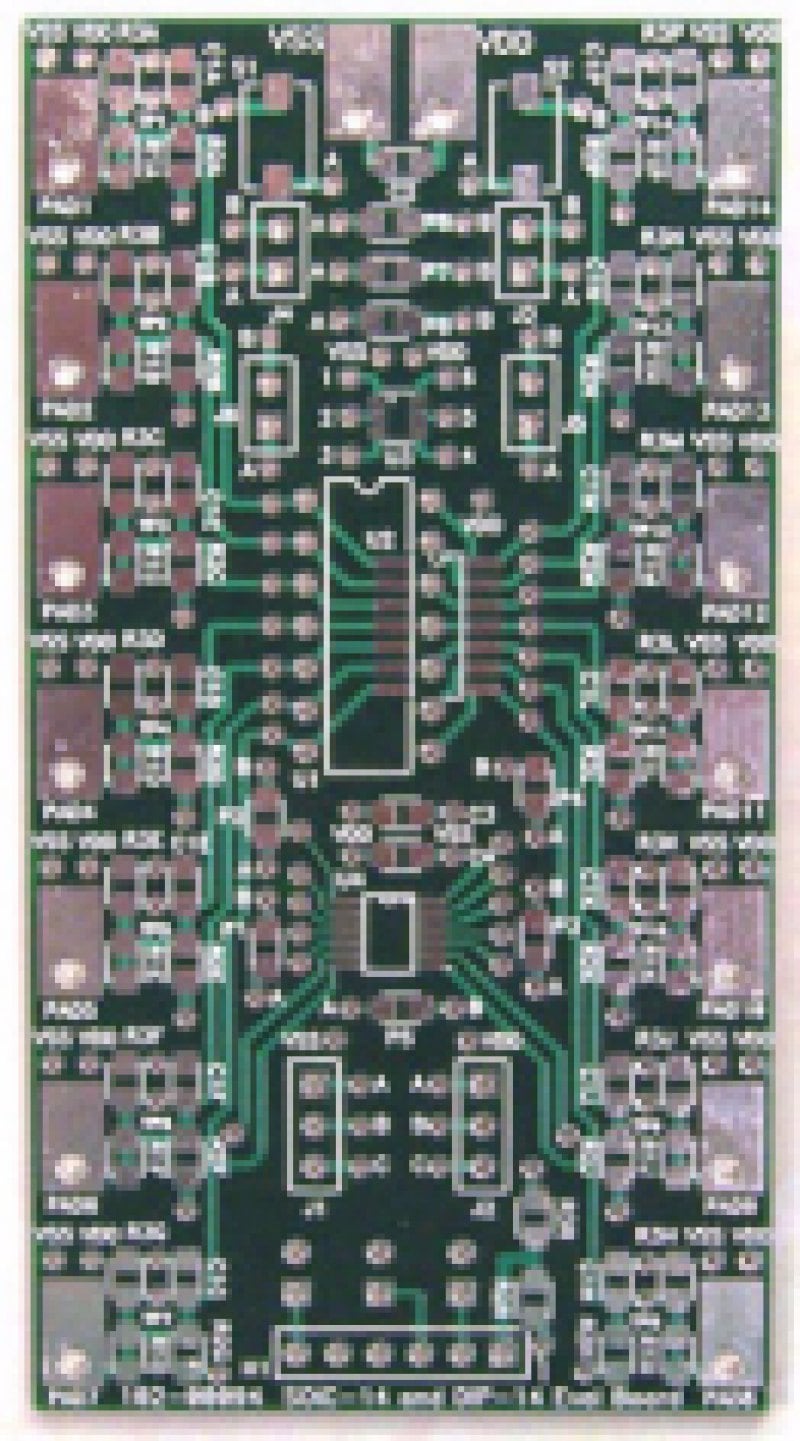

14-PIN SOIC/TSSOP/DIP EVALUATION BOARD
- Connection Terminals may be either surface mount or through hole
- Three 14-pin footprints are supported (SOIC, DIP, and TSSOP)
- Footprints for optional passive components and other devices for:
Power Supply Filtering Device bypass capacitors Output filtering Output pull-up resistor Output pull-down resistor Output loading resistor Output series resistor Up to four additional passive components Jumper Headers SOT-23-6 device
- Silk screen area to write specifics of implemented circuit (on back of PCB)
- PICmicro MCU Baseline Flash Microcontroller Programmer (BFMP) Header
- Can be used for SOIC-14 or TSSOP-14 to DIP-14 converter
Package Contents
The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages.
Additional Resources
Specifications
Various members and package types from the following Device families:
- Digital Potentiometers
- Operational Amplifiers
- Programmable Gain Amplifiers
- Comparators
- Voltage to Frequency
- Power MOSFET Drivers
- Analog to Digital Converters
- Digital to Analog Converters
- Battery Chargers
- IrDA
- CAN
- PICmicro MCUs
