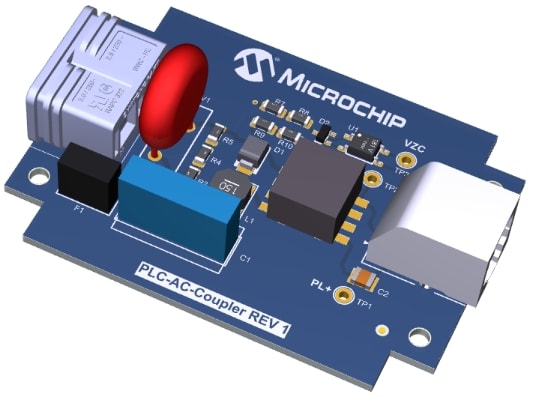

3278-plc-ac-coupler-3d-001
3278-plc-ac-coupler-3d-001

Part Number: PLC-AC-COUPLER

PLC AC COUPLER

  • Fine tuned for operation in the band 100..148 kHz
  • ABS plastic enclosure for safe use
  • PLC isolation transformer
  • Zero crossing detection circuit
  • Protection against disturbances from the power line
  • Direct connection to PL485-EK, providing differential PLC, ground and zero crossing signals
View Purchasing Options
Contact Us

Overview

PLC AC Coupler is an accessory for the PL485-EK, which allows this kit to be safely connected to an AC line.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PLC-AC-COUPLER Design Documentation Download fed272c3-9ad7-490b-af03-0efe911a06a2
PLC-AC-Coupler User's Guide Download 4fa5fd61-a535-4dba-b2f6-d49f7cd1b9f6
PL485-EK User's Guide Download 55f87831-339c-4ef8-881f-deec48b439dc
