Part Number: PKSERIAL-I2C1

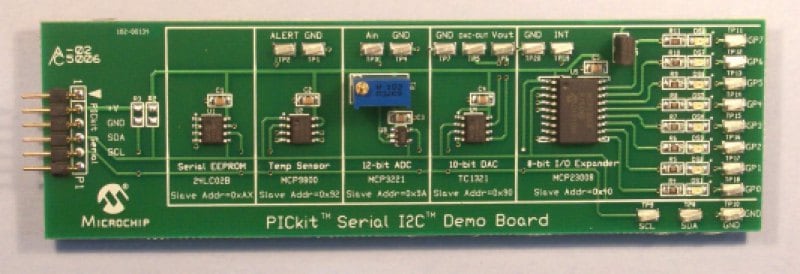

PICKIT SERIAL I2C DEMO BOARD

  • Five unique devices with I2C interfaces
  • Test points on the I2C bus and most of the devices
  • Connector for directly connecting to an I2C bus or PICkit Serial Analyzer

Use this link for more information about the PICkit Serial Analyzer

View Purchasing Options
Contact Us

Overview

The PICkit™ Serial I2C Demo Board was designed to easily connect to the PICkit Serial Analyzer (DV164122). The PICkit Serial Analyzer provides the I2C master mode serial communications and power for the PICkit™ Serial I2C Demo Board. The devices on the demo board operate in the I2C slave mode and can easily be connected to virtually any demo or development board by connecting the communications lines to connector P1.
