1444-12f752-acdc-led-driver
1444-12f752-acdc-led-driver

Part Number: PIC12F752 AC/DC LED Driver POC

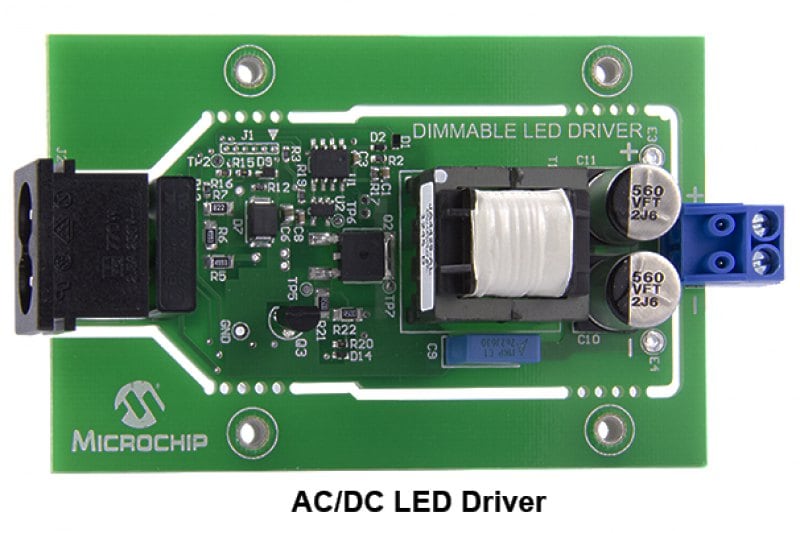

PIC12F752 AC/DC LED DRIVER (PROOF OF CONCEPT)

Design Highlights:

AC/DC Flyback Power Supply

  • ~85% Efficiency
  • Active 0.95 Power Factor Correction (PFC)
  • 90 VAC – 240 VAC Input
    • Single hardware platform
    • Firmware based configuration
  • 20 VDC / 375mA Output

PIC12F752 Controlled Topology

  • Core Independent Peripheral Integration
    • 5-bit DAC
    • Complementary Output Generator (COG)
    • High Performance Comparators
    • Hardware Limit Timer (HLT)

MCP1416 FET Driver
TRIAC Dimmable

Overview

.

Package Contents

N/A
