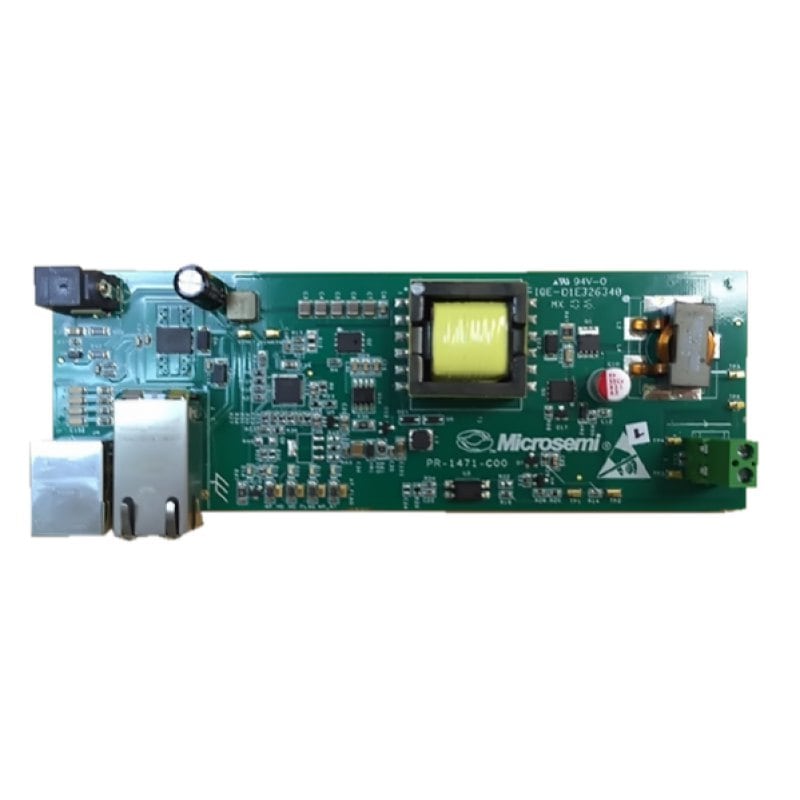

Part Number: PD70211EVB50FW-3

PD WITH PD70211 3.3V 15A, FWD

  • Featuring PD70211 and PD70224
  • IEEE 802.3af/at/Dual-AT/POH standard compliant
  • 50W - 3.3V / 15A output voltage / current
  • Active clamp forward topology
  • Wall adaptor support
  • Power is supplied through the 4-pairs of the Cat5 cable
  • Wall adapter input – standard barrel jack available for connecting to an external 42-54V Wall Adapter.
  • Data pass-through connector
  • On board LED indicators: PSE class type; 2,3,4 and 6-events
  • On board Power Good LED indicator which may be configured to monitor
  • PD front end or VPP UVLO. TA= -40°C to +70°C
  • RoHS compliant
View Purchasing Options
Contact Us

Overview

The PD70211EVB50FW-3 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ supports the current of the HDBaseT over 4 pairs, which is more than twice the power of a standard IEEE 802.3at Type 2 interface.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PD70211EVB50FW-3 Design Files Download 101e470d-59cb-41b0-ba88-9a25bc8036a0
PD70211EVB50FW-3 User Guide Download 55b4d8ae-9dce-40b5-ab4b-fcf14da14ad6
