3121-pd70101evb15f-5
3121-pd70101evb15f-5

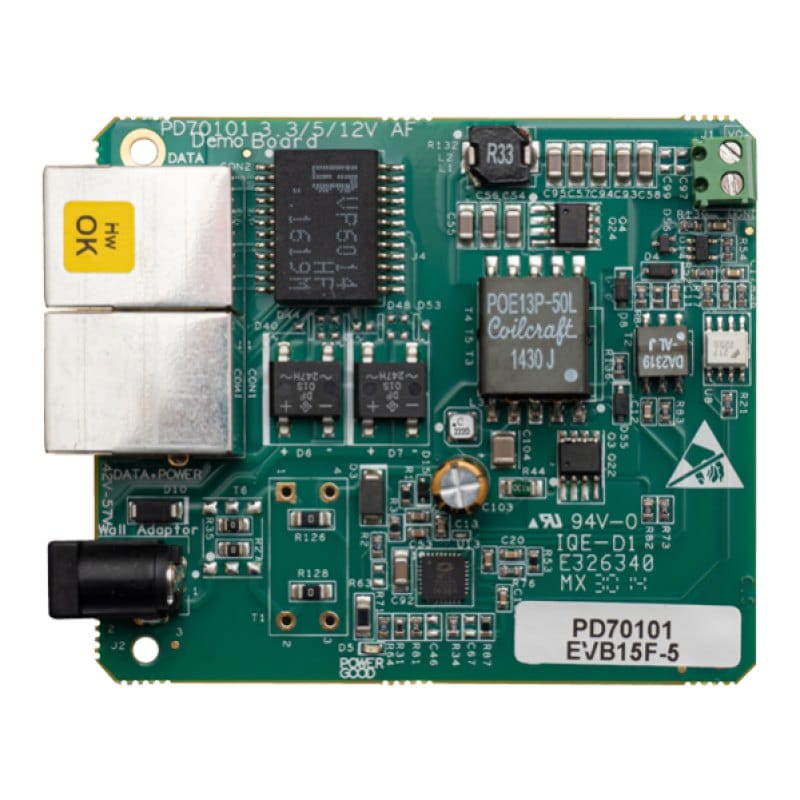

Part Number: PD70101EVB15F-5

PD WITH PD70101 5V 2.6A, FB

  • Featuring PD70101
  • IEEE 802.3af/at standard compliant
  • 13W - 5 V / 2.6 A output voltage / current
  • Flyback topology
  • Designed to support one PD-chip application (2-pairs)
  • Two RJ45 connectors (data and power in, data out)
  • Optional wall adapter – DC in connector
  • Output voltage connector
  • On board LED indicator
  • Pulse transformers and common mode chocks
  • Evaluation board working temperature: 0°C to +70°C
  • Optional standby circuitry
  • RoHS compliant
View Purchasing Options
Contact Us

Overview

The PD70101EVB15F-5 evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PD70101EVB15F-5 Design Files Download 4ac00048-dcf4-4391-9b26-8f72853a3504
PD70101EVB3F/6F/15F5/15F12 User Guide Download 130c327d-d3aa-4234-9035-5d8294ea10f3
