Part Number: PD-IM-7618T4
PSE AT WITH PD69210 PD69208T4
- Featuring PD69208T4, PD69210
- IEEE 802.3af/at/bt Type 3 standard compliant
- Eight 2-pair 30W ports
- LED stream
- UART / USB host interface
- Two gangs (each contains 4 RJ45 connectors)
- Switch domain isolated from PoE domain
- Switch domain USB interface
- PoE controller manual reset
- LED status indication for all ports (LED stream)
- Requires single power source only
- 0°C to 40°C working temperature
- RoHS compliant
Overview

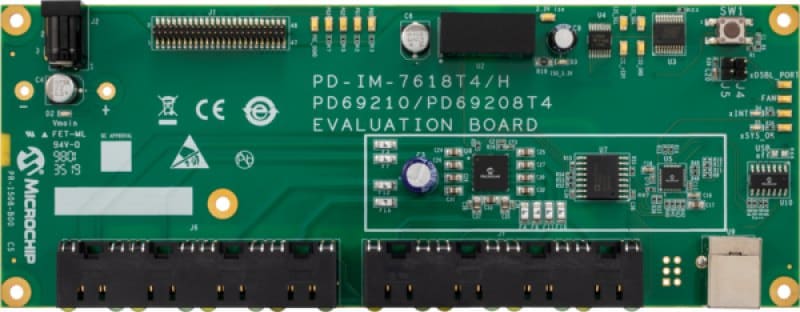

The PD-IM-7618T4 evaluation board is developed based on PD69208T4 PSE manager and PD69210 controller, and demonstrates the operation of an eight 2-pair port system. The evaluation system provides designers with the required environment to evaluate the performance and implementation of PD69208T4 (eight 2-pair ports) PoE manager and PD69210 PoE controller. The included firmware demonstrates 2-pair operation. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with flexibility and easy configuration.
For the latest PoE FW available, please visit Microchip Software Libraries.
