Part Number: MD2131DB1

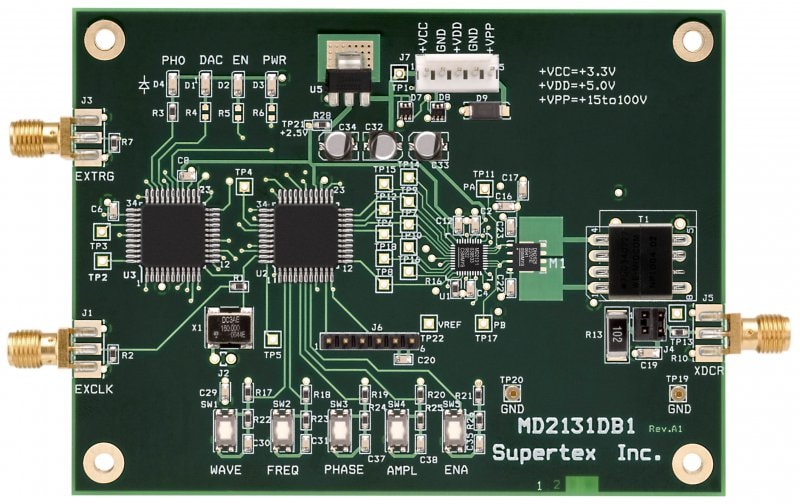

MD2131DB1 - ULTRASOUND BEAMFORMING TRANSMITTER DEMO BOARD

Please download the user guide for more information
View Purchasing Options
Contact Us

Overview

The MD2131DB1 is to used to generate the ultrasound transmit beamforming waveform with the Gaussian profile, and the adjustable frequency, amplitude and phase angle.  The MD2131DB1 circuit uses two depletion-mode MOSFETs in the push-pull mode to drive the center tapped, wide band, ultrasound output transformer. The two depletion-mode MOSFETs are packaged in a single 5x5mm DFN package. The sources of the MOSFETs are directly driven by the MD2131’s two outputs, whose maximum peak sinking current is up to 3.0A. These current source outputs are controlled by the MD2131’s internal angular vector switch matrix and the in-phase and quadrature PWM input signals.

PLEASE CONTACT YOUR LOCAL MICROCHIP SALES OFFICE FOR DEMO BOARD AVAILABILITY.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MD2131DB1 Demonstration Board User's Guide Download 13e75a7e-7bc8-4e7f-8067-f88e691f9052
