Part Number: MCP9700DM-PCTL

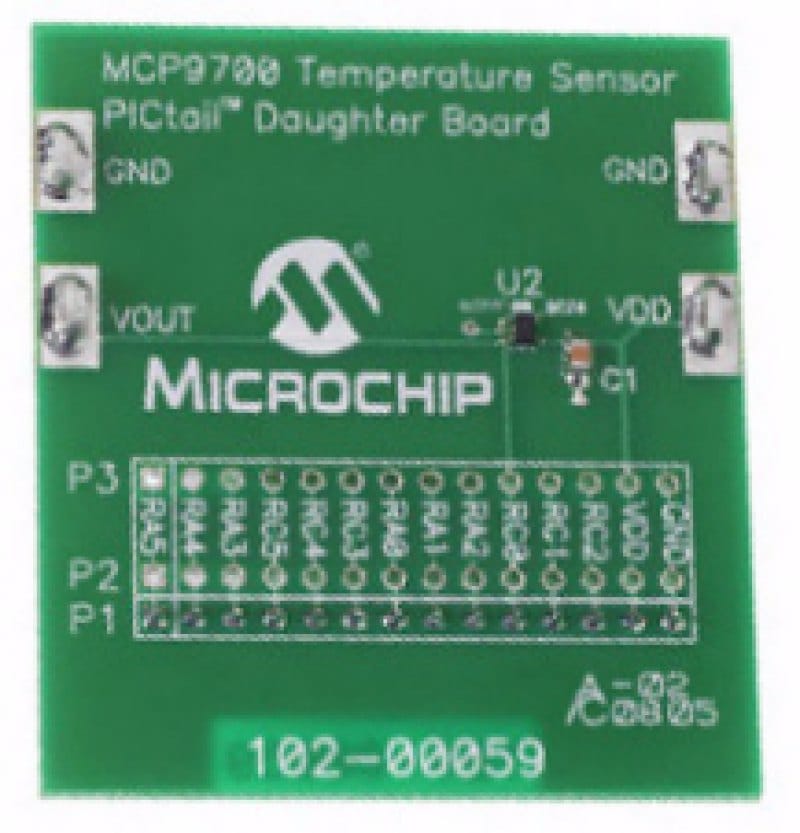

MCP9700 TEMPERATURE-TO-VOLTAGE CONVERTER PICTAIL? DEMO BOARD

  • Firmware that uses PIC16F676 to measure and display temperature in degree Fahrenheit or Celsius
  • Small PCB layout
  • Standard 100 mil 14-pin header (P1) for easy interface to PICkit™ 1 Flash Starter Kit or custom application
View Purchasing Options
Contact Us

Overview

The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board demonstrates how to interface the MCP9700 to a microcontroller. This can be used by the system designer as an example of how to integrate an analog temperature sensor into systems.

Package Contents
The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board demonstrates how to interface the MCP9700 to a microcontroller. This can be used by the system designer as an example of how to integrate an analog temperature sensor into systems.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP9700 Temperature-to-Voltage Converter PICtail Demo Board User's Guide Download a8d30f35-4fef-406f-8cdf-8899924fe050
MCP9700 Temperature-to-Voltage Converter PICtail Demo Board Gerbers Download 5229d183-55c2-466e-b451-038b434ff2c7

Software

Title
Date
MCP9700 Temperature-to-Voltage Converter PICtail Demo Board Firmware Download 12 Jan 2006
