Part Number: MCP6S2XEV

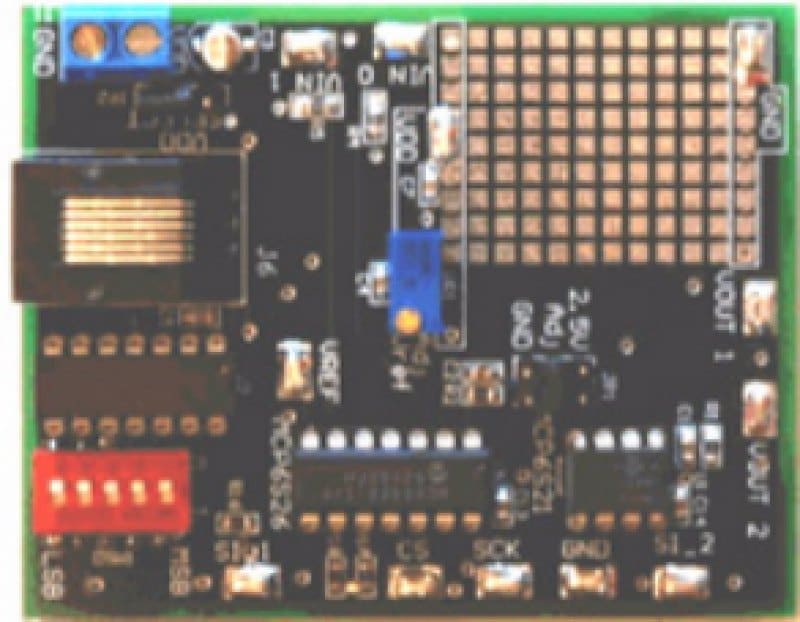

MCP6S2X PGA EVALUATION BOARD

  • MCP6S26 multiplexes 6 analog input signals
  • Device gains from 1 to 32 V/V can be configured
  • MCP6S21/91 and MCP6S26 are cascaded to allow for gains between 1 V/V and 1024 V/V
  • Reference voltage inputs of 0V, 2.5V and 5.0V are provided
  • SMD pads for adding SMD connectors
  • Prototyping area for custom circuit development
  • Reprogrammable PIC16F676 with ICSP™ (In-Circuit Serial Programming) interface
View Purchasing Options
Contact Us

Overview

The MCP6S2X PGA Evaluation Board (Rev. 4) features the MCP6S21/91 and MCP6S26 devices. The PGA devices interface to a PIC16F676 providing versatile selection of input channels and gains to evaluate device performance. The board supports multiple input signal sources and two devices are cascaded to produce a gain between 1 V/V and 1024 V/V.

Package Contents
The MCP6S2X PGA Evaluation Board (Rev. 4) features the MCP6S21/91 and MCP6S26 devices. The PGA devices interface to a PIC16F676 providing versatile selection of input channels and gains to evaluate device performance. The board supports multiple input signal sources and two devices are cascaded to produce a gain between 1 V/V and 1024 V/V.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP6S21/2/6/8 Datasheet Download 1d440d8a-6a9e-4da7-8354-7b99ca916007
MCP6S2X PGA Evaluation Board Gerbers Download 56cb4c78-bcd6-49f9-bd3e-be6f51048b16
Single-Ended, Rail-to-Rail I/O, Low-Gain PGA Download 5dd3e48f-dde9-4394-aa4c-d27e68ffa95c
MCP6S2X Eval. Board User's Guide Download 85a8f389-9bbc-4faa-ad22-8b393f8b9d41

Application Notes

Title
Date
Document Category
Interfacing MCP6S2X PGAs to PICmicro® Microcontroller 26 Sep 2005 Link Application Notes

Software

Title
Date
MCP6S2X PGA Evaluation Board Firmware Download 06 Jan 2006
