537-mcp2030dm-tpr
537-mcp2030dm-tpr

Part Number: MCP2030DM-TPR

MCP2030 BIDIRECTIONAL COMMUNICATIONS DEMO KIT

  • Demonstrates a short range bidirectional communication using LF (125 kHz) and UHF (434 MHz)
  • Demonstrates a reliable hands-free access control application by utilizing three orthogonally positioned antennas on the transponder board
  • A stand-alone ADC device on the Transponder samples the RSSI voltage. The digitized RSSI data is then sent to the Base Station unit. The Base Station unit can estimate the distance and position of the Transponder based on the RSSI data
View Purchasing Options
Contact Us

Overview

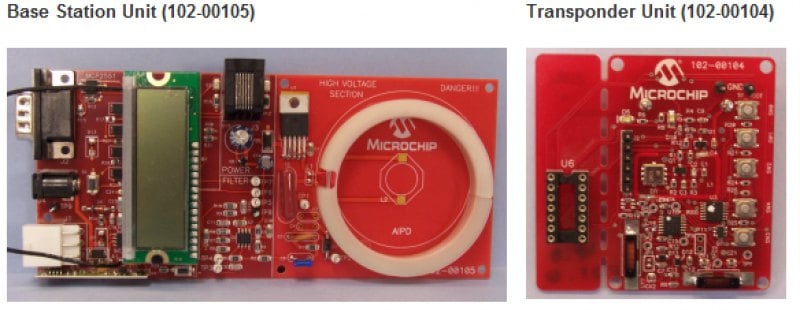

The MCP2030 Bidirectional Communication Demo Kit demonstrates short range bidirectional communication applications using the features of the MCP2030. The demo kit consists of two units: (a) Base Station unit and (b) Transponder unit. The Base Station unit transmits a low frequency (LF) command looking for the transponder in the field. When the transponder unit detects the Base Station command, it responds with its ID and RSSI (Received Signal Strength Indicator) using UHF frequency (434 MHz). When the Base Station unit receives the response from the Transponder unit, it displays the received Transponder ID and RSSI data on the LCD. The features and concepts demonstrated by the demo kit can be used for low frequency (LF) sensing and various hands-free access control security applications. The bidirectional communication range is up to about 3 meters and mainly limited by the property of the LF frequency.
Package Contents
The MCP2030 Bidirectional Communication Demo Kit demonstrates short range bidirectional communication applications using the features of the MCP2030. The demo kit consists of two units: (a) Base Station unit and (b) Transponder unit. The Base Station unit transmits a low frequency (LF) command looking for the transponder in the field. When the transponder unit detects the Base Station command, it responds with its ID and RSSI (Received Signal Strength Indicator) using UHF frequency (434 MHz). When the Base Station unit receives the response from the Transponder unit, it displays the received Transponder ID and RSSI data on the LCD. The features and concepts demonstrated by the demo kit can be used for low frequency (LF) sensing and various hands-free access control security applications. The bidirectional communication range is up to about 3 meters and mainly limited by the property of the LF frequency.
System Requirements
Supported Operating Systems:

  • PICkit™ 2, ICD 2, MPLAB®
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC18F2585/4585/2680/4680 Data Sheet Download a8b32e60-3e00-426e-837b-a858f4a94b90
TC4421/22 Datasheet Download 797c656c-6cf3-46fe-91e3-00d7797127ef
MCP2030 Three-Channel Analog Front-End Device Download 17e9cbf9-4e87-4a77-b250-e6fc13fcd75c
18-Bit ADC with I2C Interface and Onboard Reference Download 893776af-b3a5-4440-9345-e79743e05d35
PIC12F635/PIC16F636/PIC16F639 Data Sheet Download 800fb34a-e762-4253-8e7b-4e423354b692
MCP2030 Bidirectional Communications Demo Kit Gerbers Download 2adea526-1f80-4c6c-a43b-c19fd9597ab5
MCP2030 Bidirectional Communications Demo Kit User's Guide Download b74cb3f5-cafb-48d0-999a-aaac885cde0b

Software

Title
Date
MCP2030 Bidirectional Communications Demo Kit Firmware Download 21 Dec 2006
