Part Number: MCP1631RD-MCC2
MCP1631HV MULTI-CHEMISTRY BATTERY CHARGER REFERENCE DESIGN_2
- Input Operating Voltage Range - +5.3V to +16V
- Maximum of 2A Charge Current for single cell Li-Ion
- Charge NiMH, NiCd or Li-Ion Chemistries
- Charge 1 cell or 2 cell Li-Ion Batteries in Series
- Charge 1 cell to 5 cell NiMH or NiCd Batteries in Series
- Drive one or two 1 Watt LEDs in series.
- Select Chemistry and Cells using push-buttons
- ON/OFF switch
- Charge Status Indication
- Programmable Charge Profile
- Programmable Overvoltage Shutdown (1.8V/Cell for NiMH/NiCd or 4.4V/Cell for Li-Ion)
- Complete “C” source code is provided
Overview
Package Contents

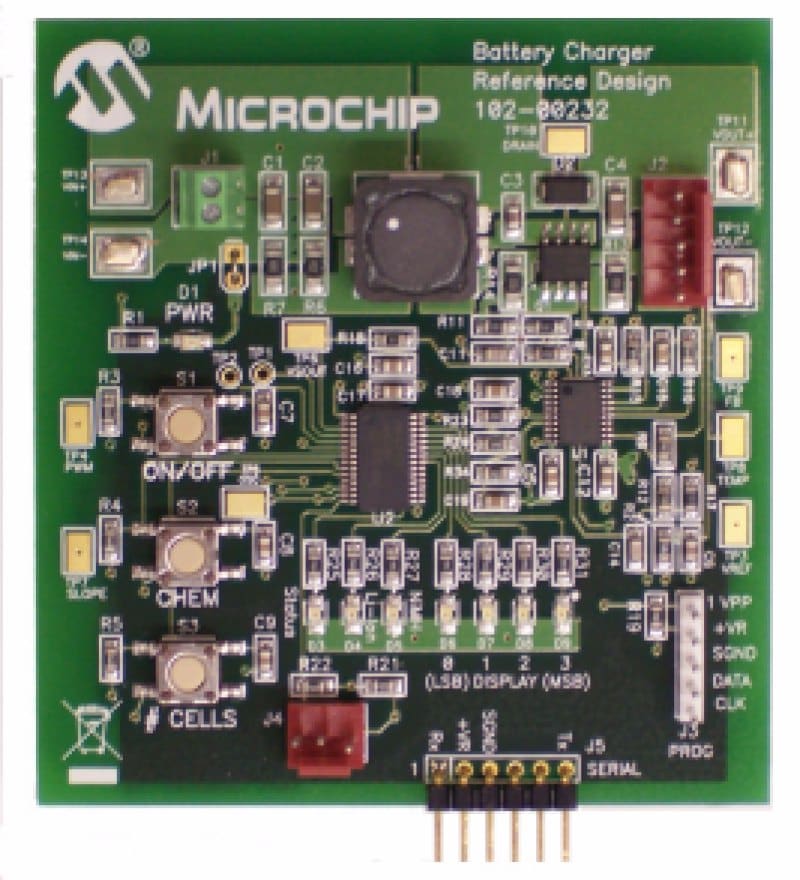

The MCP1631HV Multi-Chemistry reference design board is used to charge one to five NiMH or NiCd batteries, charge one or two cell Li-Ion batteries, or drive one or two 1W LEDs. The board uses the MCP1631HV high speed analog PWM and PIC16F883 to generate the charge algorithm for NiMH, NiCd or Li-Ion batteries. The MCP1631HV Multi-Chemistry Battery Charger is used to evaluate Microchip’s MCP1631HV in a SEPIC power converter application. Documentation
|
Title
|
|||
|---|---|---|---|
| PIC16F882/883/884/886/887 Data Sheet | Download | ||
| MCP1631HV Multi-Chemistry Battery Charger Reference Design BOM | Download | ||
| MCP1631HV Multi-Chemistry Battery Charger Reference Design | Download | ||
| MCP1631HV Multi-Chemistry Battery Charger Reference Design Gerbers | Download | ||
| MCP1631/HV/MCP1631V/VHV High-Speed, Pulse Width Modulator | Download |
