Part Number: MA240041

PIC24FJ512GU410 PLUG-IN MODULE

Due to the flexibility allowed by the PPS feature, the 100-pin PIC24FJ512GU410 device can perform all the base functions on the Explorer 16/32 development board. In addition, the PIM is compatible with most of the PICtail™ Plus daughter boards supported on the Explorer 16/32 development board. You can expand the hardware capability with the help of PICtail™ Plus daughter cards and mikroBUS™ accessory boards.

Getting Started
• Read the Explorer 16/32 User's Manual (available at Documentation and Software section of this page)
• Plug in the PIC24FJ512GU410 general purpose PIM into the Explorer 16/32 development board
• Download the free MPLAB X IDE
• Download the suitable MPLAB XC Compiler
• Download and unzip the appropriate firmware demo code (available at Documentation & Software section of this page) and program the device on the PIM

For demo codes using the Explorer 16/32 development board and PIC24FJ512GU410 PIM, please click HERE

Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The PIC24FJ512GU410 General Purpose Plug-in Module (PIM) is designed to demonstrate the capabilities of the PIC24FJ512GU410 family using the Explorer 16/32 Development Board (DM240001-2). All the pins from the device are mapped directly to the PIM connector (100-Pin ICE).

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

DM240001-3

EXPLORER 16/32 DEVELOPMENT KIT

The Explorer 16/32 Development Kit is a low-cost modular development system for Microchip's 16-bit and 32-bit microcontrollers. It supports devices from the PIC24F, dsPIC®, and PIC32 families, with processor Plug-In Modules (PIMs) for easy device swapping. Kit contains 16-bit PIC24FJ1024GB610 high memory, super-set MCU PIM (MA240023) as well as necessary USB cables (Type-C and micro-B&

DM240018

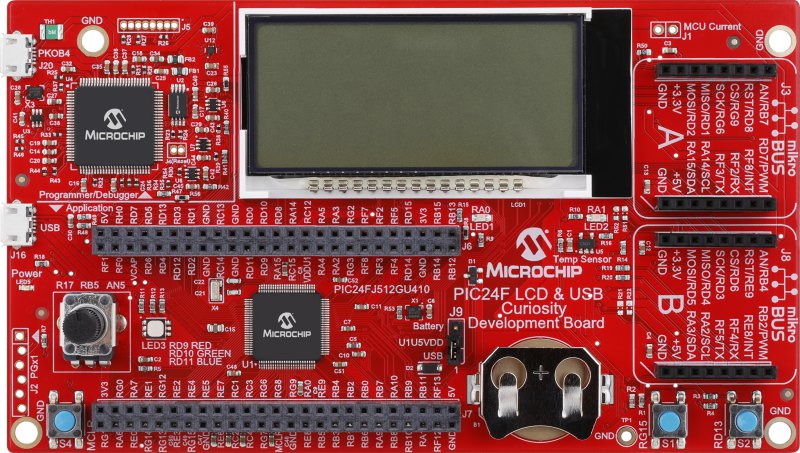

PIC24F LCD AND USB CURIOSITY DEVELOPMENT BOARD

The PIC24F USB and LCD Curiosity Development Board is a cost-effective, fully integrated development platform that facilitates you to explore segmented LCD interfacing and various features of the low power PIC24F MCUs with an integrated LCD controller. Designed from the ground-up to take full advantage of Microchip’s MPLAB® X IDE and MPLAB Code Configurator (MCC), the board includes an integrated programmer/debugger and requires no additional hardware, simplifying your prototyping.

All Application Notes

Documentation

Title
Document Id
PIC24FJ512GU410 General Purpose Plug-In Module (PIM) Information Sheet Download 7477b86a-3b34-4ae7-a2d2-18ac6601f7d8

Software

Title
Date
Explorer 16/32 Board Demo Code Download 13 Feb 2024
