1076-hv7350db1
1076-hv7350db1

Part Number: HV7350DB1

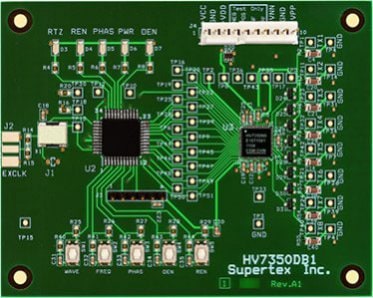

HV7350DB1 - 8-CHANNEL ±60V, ±1.0A, ULTRASOUND PULSER DEMO BOARD

Please download the user guide for more information
View Purchasing Options
Contact Us

Overview

The HV7350 is a monolithic eight channel, high-speed, high voltage, ultrasound transmitter RTZ pulser. This integrated, high performance circuit is in a single, 8x8x0.9 mm, 56-lead QFN package. The HV7350DB1 is used to generate the basic high voltage pulse waveform as an ultrasound transmitting pulser.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV7350DB1 Demonstration Board User's Guide Download 23757359-785f-4e1c-8724-0a1a25313a17
