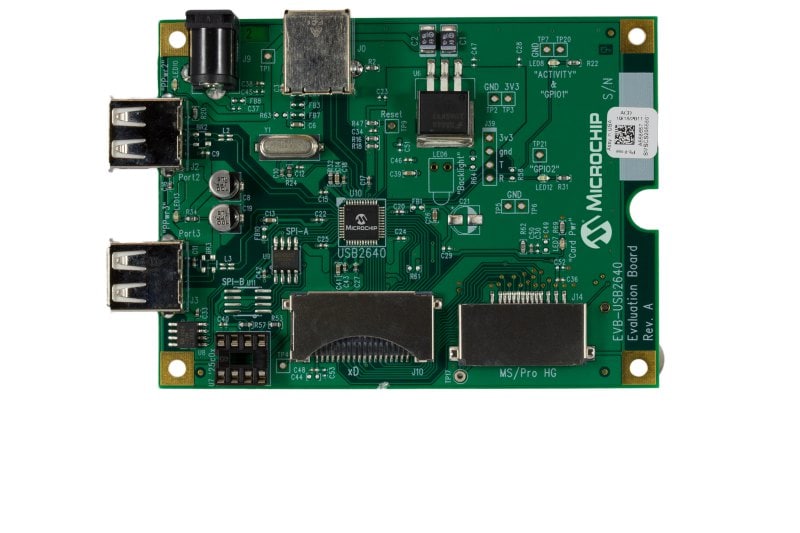

Part Number: EVB-USB2640
USB2640 USB 2.0 2 PORT HUB, WITH ULTRA FAST FLASH MEDIA CONTROLLER EVAL BOARD
USB2640 USB 2.0 2 Port Hub, with Ultra Fast Flash Media Controller Eval Board
Overview
The Microchip USB2640 contains an Ultra Fast USB 2.0 Hub, Flash Media Controller, and Protocol Bridge Combo. The EVB-USB2640 Evaluation Board demonstrates a standalone application for developers of the following applications: Flash Media Card Reader/Writer, printers, desktop and mobile PCs, consumer A/V, and flat panel displays, among others. It supports media connectors for the xD Picture CardTM xD, Memory Stick™ MS, Secure Digital SD, and MultiMediaCard™ MMC interfaces. The EVB-USB2640 is designed to demonstrate the unique features of this device using a low-cost PCB implementation with individual port power control for the two downstream USB 2.0 ports. It is designed to support internal default configuration settings and either an external I²C EEPROM optional for customized configured functionality or SPI flash for customized configured functionality or for external firmware.
