Part Number: EVB-LAN9252-3PORT

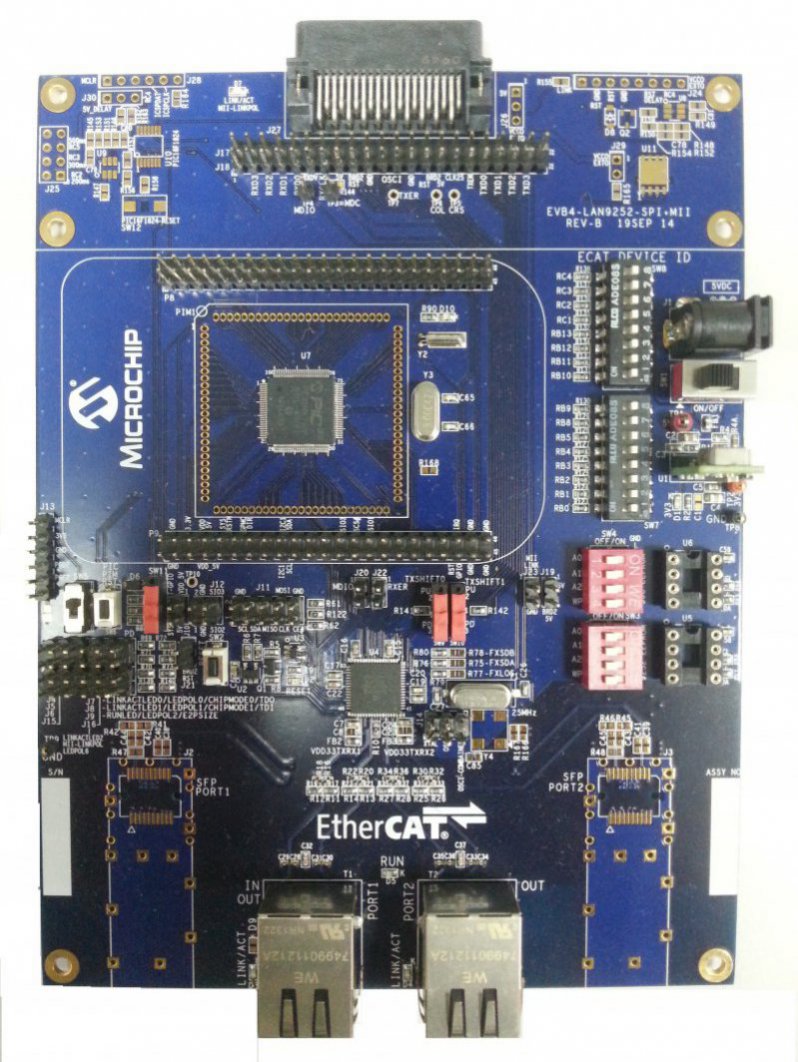

LAN9252 – 3-PORT ETHERCAT SLAVE CONTROLLER EVALUATION KIT WITH SPI PDI INTERFACE

  • The EVB-LAN9252-3PORT supports two Integrated PHY's via on board RJ45 Connectors and one External PHY through MII interface
  • The EVB-LAN9252-3PORT supports SPI and SQI based PDI configurations with onboard PIC32MX and option to plug-in third part SOC's like Beagle Bone Black
  • Option for onboard Fiber Interface via SFP module
  • The onboard EEPROM to configure the EtherCAT salve configuration
    • Part Number: Quantity: Price per Unit (in USD): Total Amt:
    Continue Shopping Go to Cart

    Overview

    The LAN9252-3PORT EVB is an 3-Port EtherCAT slave controller which addresses our customers’ requests for a standalone platform to develop an EtherCAT slave device with SPI/SQI as the PDI Interface . This board supports on-board PIC32MX or option for other SoC’s. It supports three network connections with two integrated PHY’s in RJ45 sockets and Option for interfacing any third party PHY using MII interface .  For flexible network configuration Port 1 or Port 3 can be configured as upstream port. Integrated PHY’s optionally fit optical interfaces to accommodate fiber via an SFP module. This board is delivered in basic DIGIO mode and on power-up will appear to a host as an EtherCAT slave. The designer has freedom to develop further using PIC32MX

    To view this video, please click manage cookies below and accept functional cookies.
    Manage Cookies

    All Application Notes

    Documentation

    Title
    Document Id
    EVB-LAN9252-3PORT-Gerber-Rev-C Download 6957eaff-c04d-412d-9010-3f5729bb6cd3
    EVB-LAN9252-3PORT-Board Design Files-DSN-Rev-C Download c049d0bf-3c54-43f0-9d32-45b10c770440
    EVB-LAN9252-3PORT-Schematics-Rev-C Download 58060d03-76e6-48f2-96a4-c3b5b23b446d
    EVB-LAN9252-3PORT-BOM-Rev-C Download 1b414bb3-ca71-4dee-89fa-e5368340220c
    EVB-LAN9252-3PORT EtherCAT® ESC PHY Connection Mode User's Guide Download 93b4efec-ee1b-4d8c-94bc-18d818943a82
