Part Number: EV77SPPS3MC2A

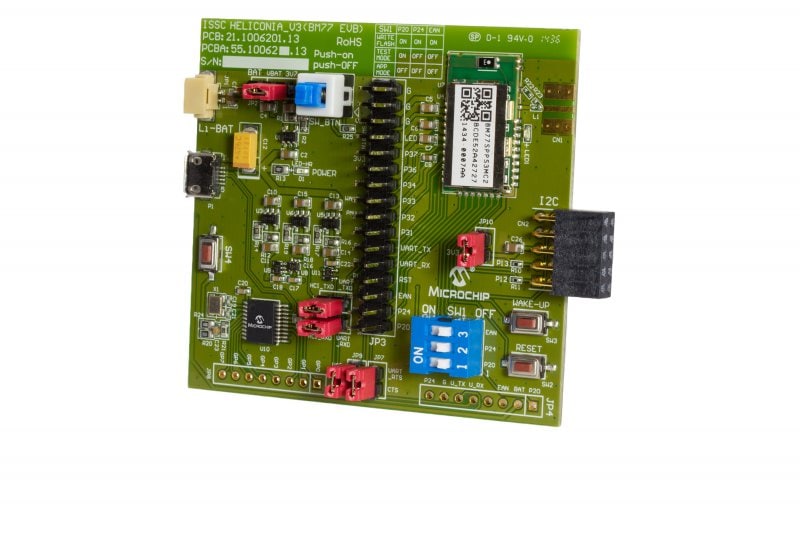

BM77 BLUETOOTH 4.0 DUAL MODE EVALUATION BOARD

• Enables rapid development and prototyping
• On-board BM77 Bluetooth Dual Mode module supporting SPP Bluetooth Classic and transparent serial data over Bluetooth Low Energy
• Integrated Configuration and Programming interface for updating configuration settings and firmware
• MCP2200 USB to UART converter
• I2C expansion port
• Connection status LEDs

Overview

The BM77 Bluetooth® Dual Mode Evaluation Board (EVB) allows the designer to evaluate and demonstrate the capabilities of the BM77 Bluetooth 4.0 Dual Mode Module.  The evaluation board includes an integrated Configuration and Programming USB interface for plug-and-play capability.  It also includes on-board breakout pin header connections for convenient access to the BM77 electrical connections to enable rapid prototyping.
Package Contents
• BM77 Bluetooth 4.0 Dual Mode Evaluation Board
• Micro USB cable
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
BM77 EVB User's Guide Download 8884a6e6-24f2-43f1-b674-f76acae43b95
BM77 Product Brief Download 82a0c752-b9fe-4490-bfd8-25b51a9e9094

Software

Title
Date
BM77 Android App Demo Download 02 Oct 2014
PC ChatTool Download 02 Oct 2014
MCP2200/MCP2221 Windows Driver and Installer Download 08 Mar 2021
