Part Number: EV73F18A

EVB-PCI11101


  • 132-pin Dual-row QFN (DQFN) RoHS- compliant package
  • Two (2) banks of programmable I/Os upon accessible headers
  •  One (1) M.2 key B connector
  • Onboard I2C serial EEPROM for EVB system configuration and function customization
  • One optional I2C or SPI target configuration bus
  • Operates from a single voltage (+12.0 V, regulated) external power supply
  • Onboard 25 MHz crystal
  • Single onboard +3.3V, regulator
  • Single onboard +1.8 V, regulator
  • Single onboard +1.1 V, regulator
  •  Regulator LED indicators for 1.8V, 3.3V, and 1.1V outputs

Overview

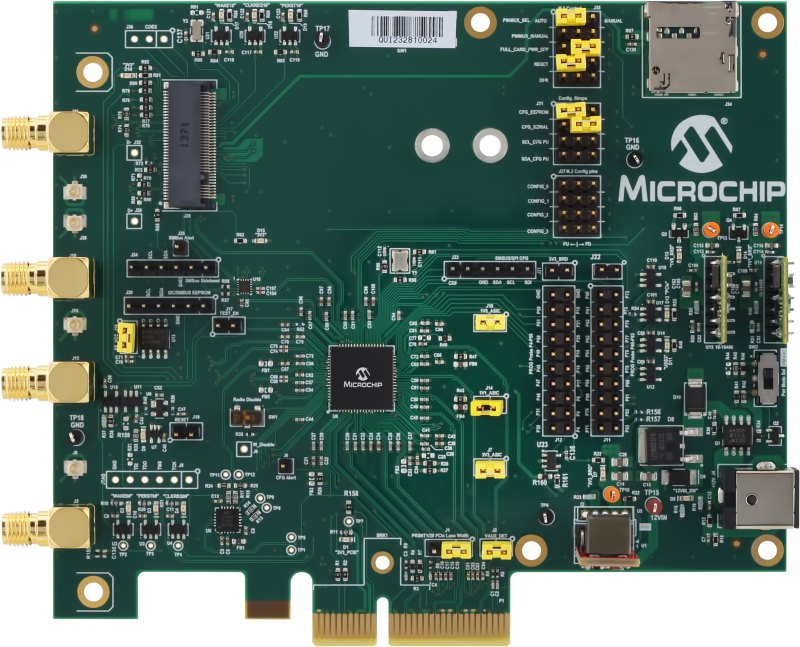

The EVB-PCI11101 is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the PCI11101, a single-chip PCIe switch with an integrated USB 3.2 Gen 2 host controller and programmable I/O options (I2C/SPI/UART/GPIO), on a six-layer RoHS-compliant Printed Circuit Board (PCB). This kit allows the user to gain an understanding of the product and accelerate the integration of the EVB-PCI11101 Evaluation Kit into the user’s design.

The evaluation platform includes one integrated downstream USB host port which connects to PCI Express key B connector.

EVB-PCI11101 demonstrates its PCIe, USB Host, and I2C/SPI/UART/GPIO driver compatibility in Linux® and Microsoft® Windows® 10.

Documentation


Title
Document Id
EVB-PCI11101 Schematics Download f646f69d-e3e3-4a43-9d7d-e077be460073
EVB-PCI1101 Evaluation Kit User’s Guide Download 0466a9e9-1b2c-4bfe-9b96-67572b3f6b34
