Part Number: EV68M17A

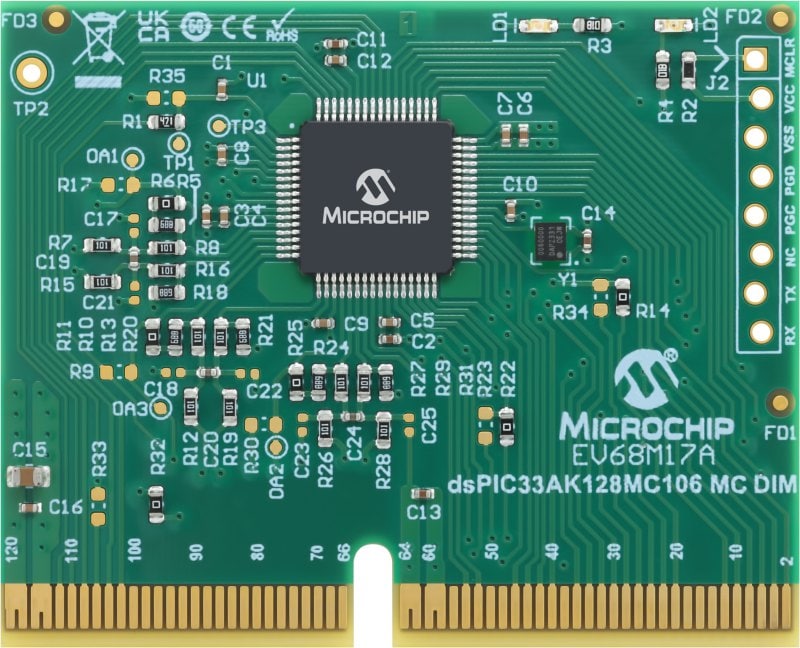

dsPIC33AK128MC106 Motor Control DIM
- 120-pin connector supports higher-pin count packages
- DIMs have a reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the entire dsPIC33AK128MC106 DSC family
- Supports both on-chip or board mounted op amps for motor current feedback
Overview
