Part Number: EV68G27A

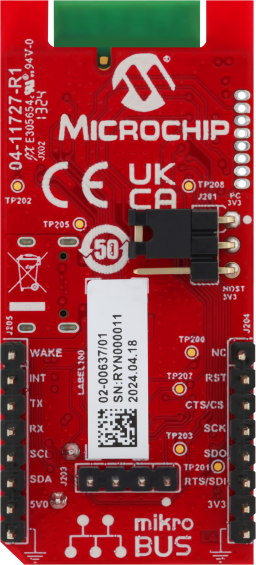

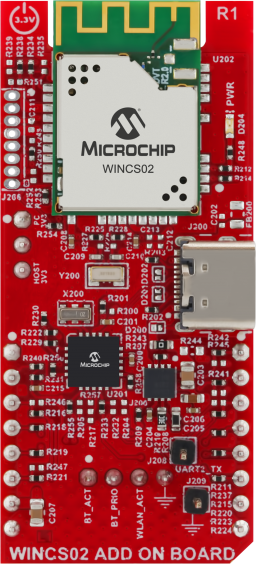

WINCS02 Add-on Board
- WINCS02PC Wi-Fi® network controller module with Trust&GO
- mikroBUS™ add-on board header for integration with host boards
- USB-C or host board-powered at 3.3 V
- Easy to use SPI-to-Wi-Fi interface
- LEDs for power and status/event indication
Overview
The WINCS02 Add-on Board is an efficient low-cost development platform to evaluate and demonstrate the features, capabilities and interfaces of our Wi-Fi network controller module, WINCS02PC. This add-on board is compliant to the mikroBUS standard and includes an on-board MCP2200 USB-to-UART converter enabling out-of-box evaluation.
The WINCS02 Add-on Board offers:
- An easy-to-use platform to speed up design concepts to market with:
- mikroBUS add-on board header for integration with RTOS and Linux host boards
- USB Type-C® interface for immediate evaluation and development on PC
- Bluetooth® coexistence support with PTA
- Support for microcontroller (MCU) integration with MPLAB® X Tools and MPLAB Harmony v3 Example Applications
- Small, low-cost form factor
The WINCS02 Wi-Fi network controller module supports a wide range of applications including:
- Internet of Things (IoT)
- Industrial automation
- Home automation
- Monitoring and diagnostics
- Access control
Getting Started: WINCS02 Application Developer's Guide
Package Contents
WINCS02 Wi-Fi Network Controller Add-on Board
Documentation
|
Title
|
|||
|---|---|---|---|
| WINCS02IC and WINCS02 Wi-Fi Module Data Sheet | PDF | HTML | ||
| WINCS02 Application Developer's Guide | Link | ||
| WINCS02 Add-on Board Regulatory Approval Documentation | Download | ||
| EU REACH Statement EV68G27A | Download | ||
| China RoHS Declaration EV68G27A | Download | ||
| WINCS02 Add On Board User's Guide | Download | ||
| WINCS02 Add-On Board Hardware Design Documentation | Download |
Silicon Products
Product |
Title |
Product |
Title |
|---|---|---|---|
| WINCS02PC | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot, PCB Antenna and Trust&GO | WINCS02PC | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot, PCB Antenna and Trust&GO |
| WINCS02PE | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot and PCB Antenna | WINCS02PE | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot and PCB Antenna |
| WINCS02UC | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot, U.FL Antenna and Trust&GO | WINCS02UC | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot, U.FL Antenna and Trust&GO |
| WINCS02UE | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot and U.FL Antenna | WINCS02UE | Global Regulatory Certified, Wi-Fi Network Controller Module With SPI Interface, Secure Boot and U.FL Antenna |
| WINCS02IC | Wi-Fi Network Controller SoC With SPI Interface and Secure Boot | WINCS02IC | Wi-Fi Network Controller SoC With SPI Interface and Secure Boot |
