Part Number: EV55W64A

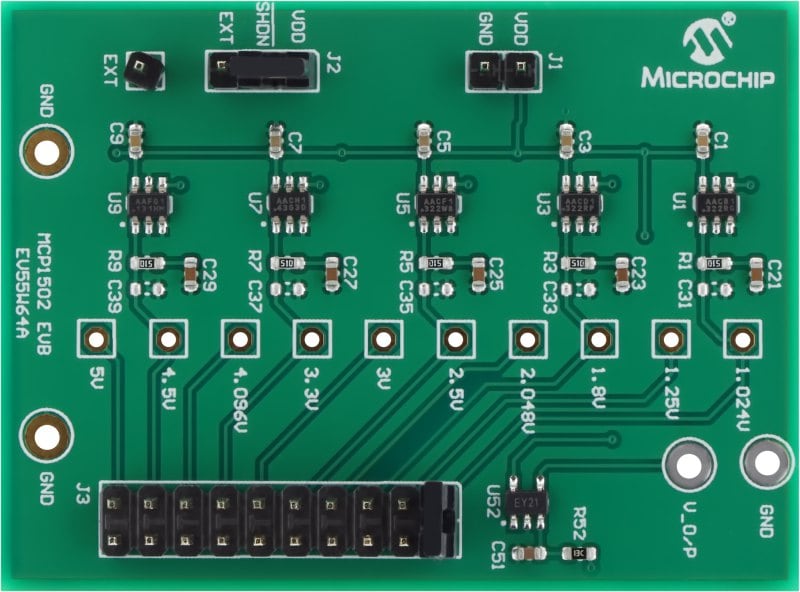

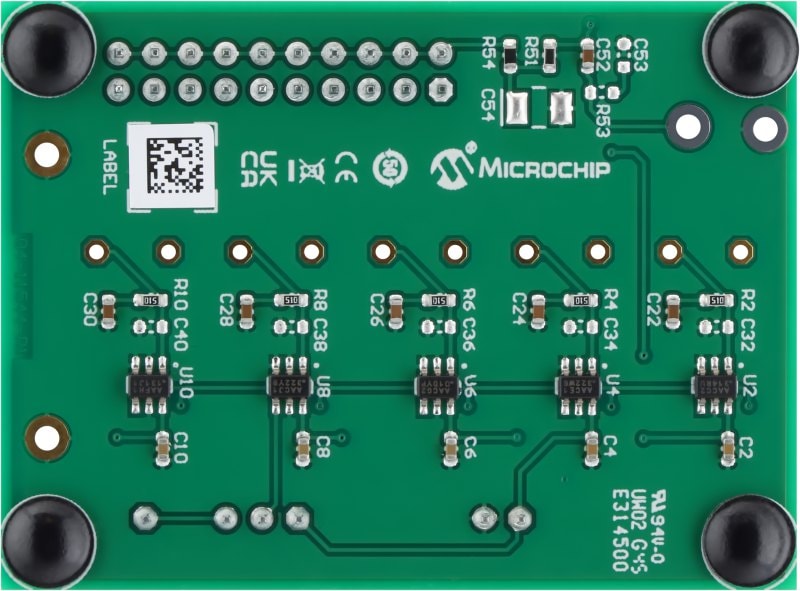

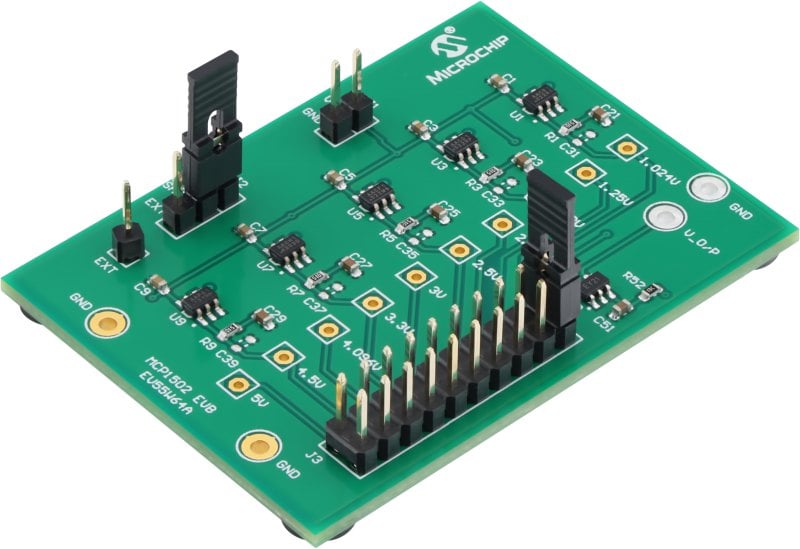

EV55W64A MCP1502 VOLTAGE REFERENCE EVALUATION BOARD

View Purchasing Options
Contact Us

Overview

The MCP1502 Evaluation Board provides the possibility to evaluate the performance of all ten voltage options of the MCP1502. It also provides the external filter circuit with an option to connect each voltage option exclusively and evaluate the output. It gives additional 8-lead WDFN and 8-lead SOIC package footprints to work with different package options as well.

Package Contents

• MCP1502 Evaluation Board (EV55W64A)

• Jumper

• Important Information Sheet

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP1502 Evaluation Board User Guide Download 63e17c09-4fed-405f-a8e4-afeaeb92cda7

Silicon Products

Product
Title
Product
Title
MCP1502 High Precision Buffered Voltage Reference MCP1502 High Precision Buffered Voltage Reference
