Part Number: EV19W62A

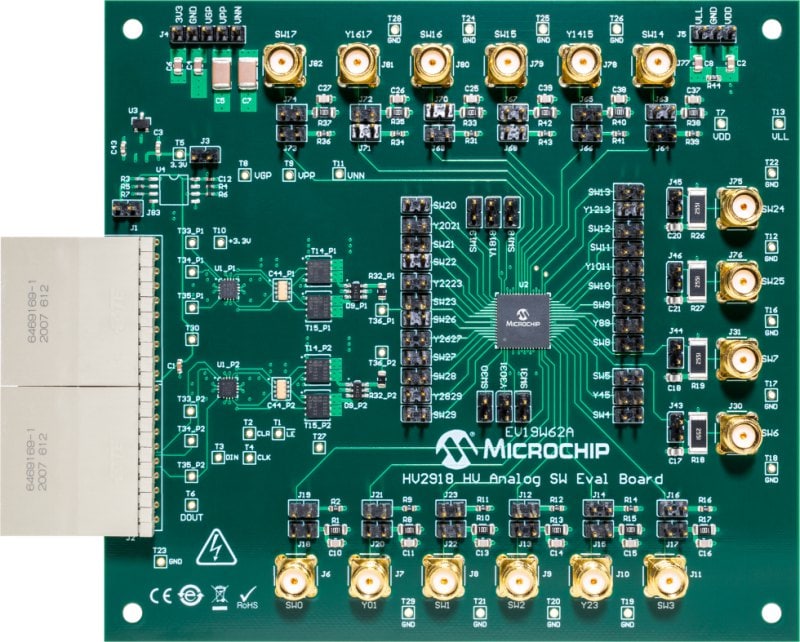

HV2918 ANALOG SWITCH EVALUATION BOARD

The HV2918 Analog Switch Evaluation Board features are:

  •  One HV2918 32-Channel HV Analog Switches without HV Supplies
  •  Designed to work with Microchip HV MUX Controller Board
  • Two 2:1 MUX with built-in MD1822 + TC6320 pulsers
  • 5 MHz 3 level voltage pulse waveform outputs
  • On-board 330 pF//2.5 kΩ dummy load
  • Mode selection and Switch ON/OFF control through PC GUI and controller board
  •  Pulser ON/OFF and time domain control through PC GUI and controller board
View Purchasing Options
Contact Us

Overview

The HV2918 Analog Switch Evaluation Board can control the HV2918 operation and built-in pulsers that are connected to two 2:1 MUX switches for demonstration.
Package Contents

The HV2918 Evalualtion Board kit includes:

  • Information Sheet
  • HV2918 Analog Switch Evaluation Board (EV19W62A)
System Requirements
Windows-7 Operating System
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV2918 Analog Switch Evaluation Board BOM Download 13670c7a-b960-4c33-8dcb-041f8e513800
HV2918 Analog Switch Evaluation Board Schematic Download feeddb8d-e927-4191-bea8-a00e17716162
HV2918 Analog Switch Evaluation Board User's Guide Download 3932294e-85d9-4404-92cc-39c4bb9fbc8a

Software

Title
Date
HV MUX Controller Board GUI Installer Download 14 Dec 2017
HV MUX Controller FPGA Code Download 14 Dec 2017
