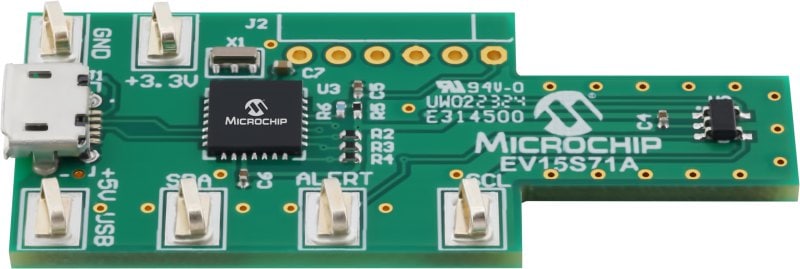

Part Number: EV15S71A

MCP9800 Evaluation Board

Download Primary User Guide

The MCP9800 Temperature  Sensor Demo Board has the following features:

  • Standard 6-pin header for programming

Microchip Thermal Management Graphical User Interface (GUI) that is used for:

  • Display the temperature in degrees Celsius (C)
  • Configure the temperature measurement resolution (9, 10, 11 or 12-bit)
  • Read an over-temperature condition
  • Set the temperature alert
  • Log the temperature data
  • Program sensor registers
View Purchasing Options
Contact Us

Overview

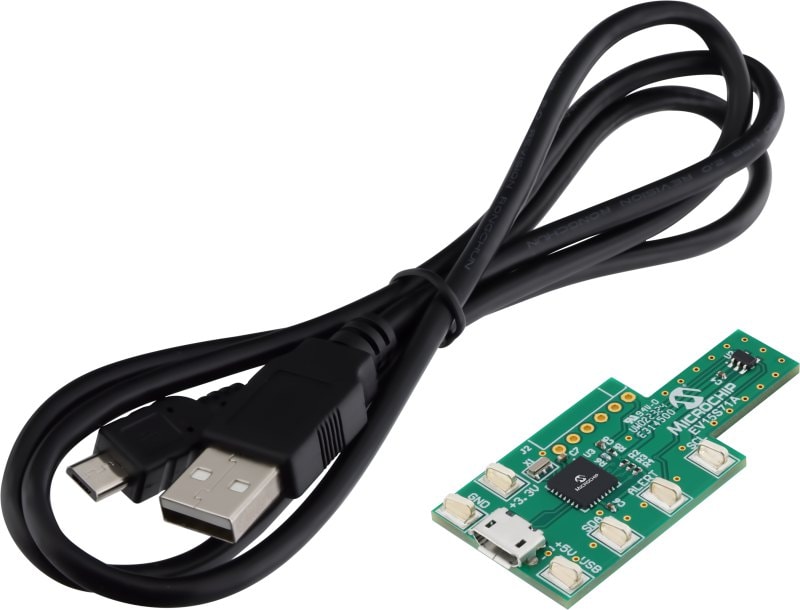

The MCP9800 Temperature Sensor Demo Board demonstrates the features of the MCP9800 Temperature Sensor. Users can connect the MCP9800 Temperature Sensor Demo Board to a PC using a Micro-USB interface and evaluate its performance.
