Part Number: EV12H55A

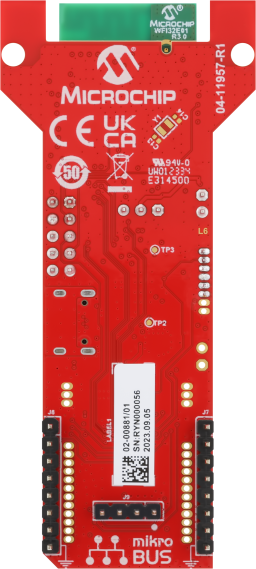

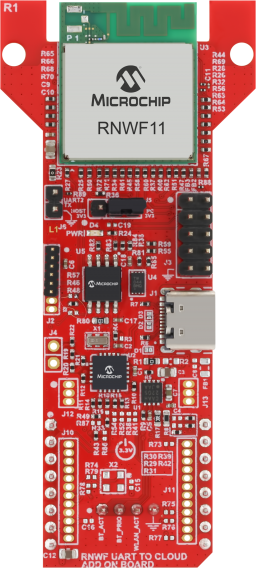

RNWF11 UART to Cloud Add-on Board
- mikroBUS® header
- MCLR, WAKE pins
- IRQ pin to interrupt the host
- On-board headers of 8-pin I/O expander
- ADC, GPIO, PWM
- On-board serial flash to support OTA of firmware of the module and host processor
- On-board TrustFLEX chip
- USB connector for UART and control signals
Overview
The RNWF11 UART to Cloud Add-on Board is a compact and easy-to-use development board to evaluate the easy cloud connection with RMWF11 module. It provides the most simple and effective way to connect your host device to cloud servers such as AWS and Azure with AT-commands via UART.
The integrated mikroBUS header allows users to plug the RNWF11 Add-on Board onto various host development boards such as Microchip microcontroller (MCU) curiosity boards.
The board has serial flash for the purpose of over-the-air (OTA) updates and general data storage. It also contains 8-pin I/O expander, which can be used as ADC, GPIOs and PWM.
The on-board TrustFLEX hardware secure element provides users a secure option to connect to cloud servers that require proprietary authentication.
Getting Started: RNWF11 Add-on Board – Python Azure Out of the Box (OOB) Demo
Documentation
|
Title
|
|||
|---|---|---|---|
| RNWF11 Wi-Fi® Module Family Data Sheet | PDF | HTML | ||
| RNWF11 UART to Cloud Add on Board User’s Guide | PDF | HTML | ||
| RNWF11 Application Developer's Guide | Link | ||
| RNWF11 Plus Curiosity Nano Azure Demo | Link | ||
| RNWFxx Python OOB Demo | Link | ||
| RNWF11 Host Examples | Link | ||
| EU REACH Statement EV12H55A | Download | ||
| EV12H55A Regulatory Approval Documentation | Download | ||
| China RoHS Declaration EV12H55A | Download |
