Part Number: DV164139-2
DV164139-2 - LOW PIN COUNT USB DEVELOPMENT KIT WITH PICKIT 3
- PICkit 3 In-Circuit Debugger included
- hardware and software
- code examples
- getting started course
Overview
The Low Pin Count USB Development Kit provides an easy, low-cost way to evaluate the functionality of Microchip PIC16F1459 (or other PIC16F145x) 14 and 20 pin USB microcontrollers. The board also supports operation with the PIC18F14K50/PIC18F13K50 pin compatible 20 pin USB microcontrollers. When used with the free Microchip Libraries for Applications software (downloadable from https://www.microchip.com/en-us/tools-resources/develop/libraries/microchip-libraries-for-applications), the platform provides all of the necessary hardware, software, and code examples necessary to quickly bring your next USB design from concept to production.

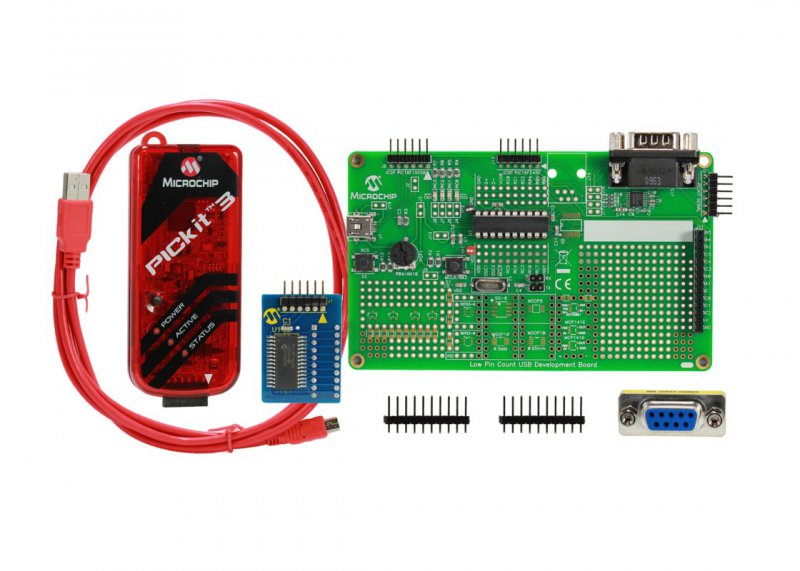

The DV164139-2 kit contains one (1) fully populated Low Pin Count USB Development Board (with PIC16F1459 DIP-20 device), one (1) PIC18F14K50 Debug Header (with adapter pins), one (1) USB mini B cable, one (1) DB9 Null Modem mini adapter, Quick Start Guide, and one PICkit 3 In-Circuit Debugger.
Additional USB Information and Resources
Package Contents
- PICkit 3 In-Circuit Debugger
- One fully populated Low Pin Count USB Development Board (with PIC16F1459 DIP-20 device)
- One PIC18F14K50 Debug Header (with adapter pins)
- One USB mini B cable
- One DB9 Null Modem mini adapter
- Quick Start Guide
