Part Number: DT100118

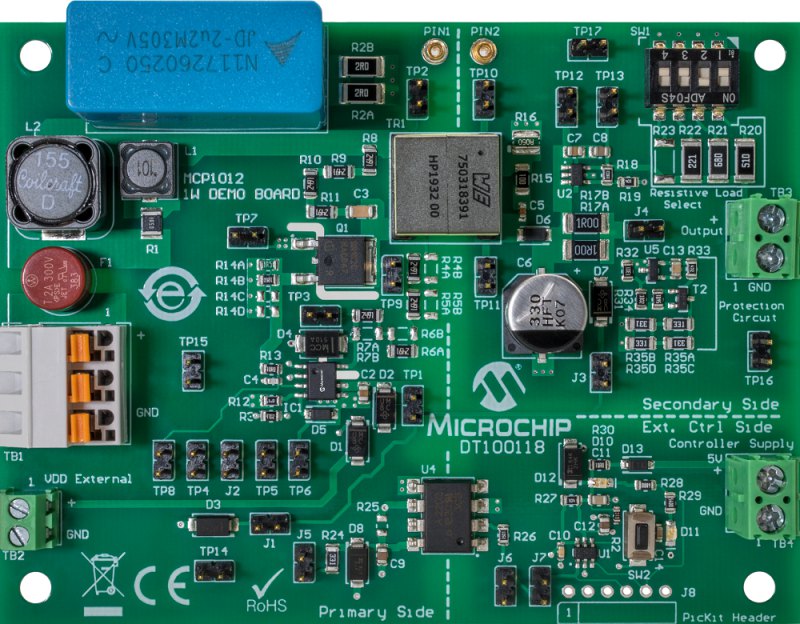

MCP1012 1W EVALUATION BOARD
• High Voltage Start-Up (rated 500V/700V)
• Internal Open-Loop, Peak Current Mode, Current Regulator for Start-Up
• Current Regulator Constant 21 μs OFF Time
• Programmable Low Frequency Oscillator (LFO) Period
• Cycle-by-Cycle Current Limiting
• Protection against Continuous Conduction Mode (CCM) of Operation
• Able to Accept External PWM Commands from a Secondary-Side Controller via Isolator (Optocoupler or Pulse Transformer)
• Under-Voltage Lockout (UVLO) and Over-Voltage Lockout (OVLO) Protections
• Sleep and Wake-Up Commands
• Robust Gate Driver, able to drive 2.2 nF Load at 65 kHz
• Overtemperature Protection (Thermal Shutdown)
• Package: 7-Lead SOIC
• Environmentally Friendly, EU RoHS Compliant, Pb-Free
Overview
Package Contents
1 x MCP1012 1W Evaluation Board1 x Jumper-Pin
