Part Number: DT100107
MIC33M650 6A STEP DOWN MODULE EVAL BOARD
The DT100107 has the following features:
• 2.4V to 5.5V Input Voltage Range
• 6A (maximum) Continuous Output Current
• Programmable VSEL (Voltage Selection):
- 9 voltage combinations of 2 three-state pins combinations
- 0.6V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V output voltage
• High Efficiency (up to 95%)
• 2 MHz Switching Frequency
• ±1.5% Output Voltage Accuracy Over Line/Load/Temperature Range
• Supports Safe Start-Up with Pre-Biased Output
• Pull-Down when Disabled (typically 10Ω)
• Less than 10 μA Shutdown Supply Current
• Low Dropout Operation (100% Duty Cycle)
• Ultra-Fast Transient Response
• Latch-Off Thermal Shutdown Protection
• Latch-Off Current Limit Protection
• Power Good Open-Drain Output
• 2.4V to 5.5V Input Voltage Range
• 6A (maximum) Continuous Output Current
• Programmable VSEL (Voltage Selection):
- 9 voltage combinations of 2 three-state pins combinations
- 0.6V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V output voltage
• High Efficiency (up to 95%)
• 2 MHz Switching Frequency
• ±1.5% Output Voltage Accuracy Over Line/Load/Temperature Range
• Supports Safe Start-Up with Pre-Biased Output
• Pull-Down when Disabled (typically 10Ω)
• Less than 10 μA Shutdown Supply Current
• Low Dropout Operation (100% Duty Cycle)
• Ultra-Fast Transient Response
• Latch-Off Thermal Shutdown Protection
• Latch-Off Current Limit Protection
• Power Good Open-Drain Output
Overview

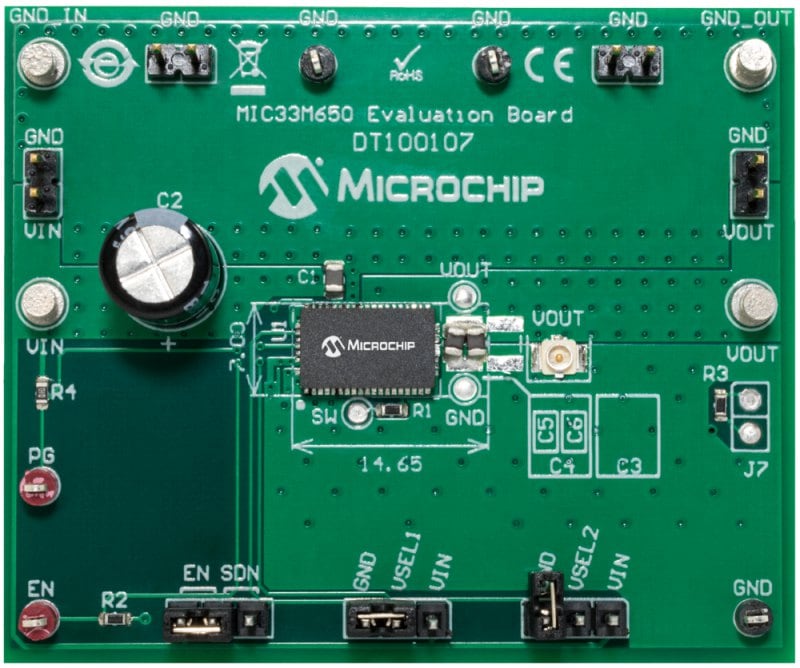

DT100107 were developed to help engineers reduce product design cycle time and have an optimum platform to evaluate the performance of these device. DT100107 provide onboard jumpers to easily set the VSEL1 and VSEL2 tristate pins to configure the output voltages requirements.
Package Contents
1x MIC33M650 6A Step Down Module Eval Board
