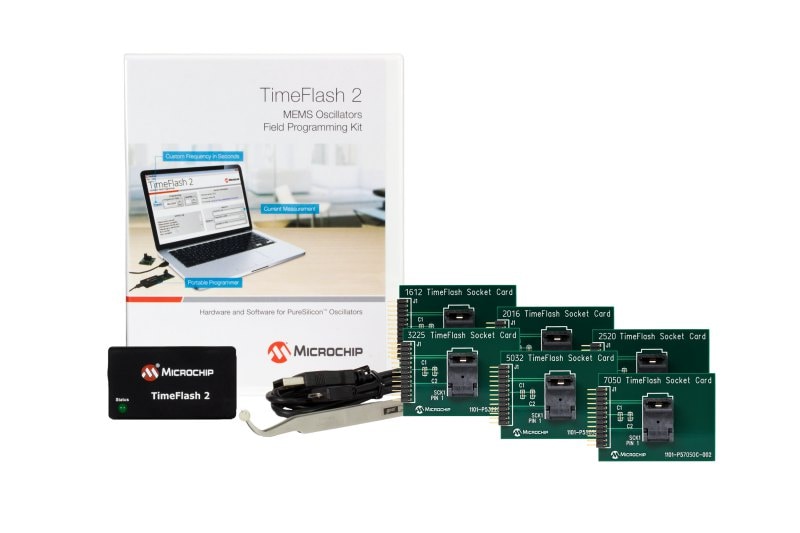

2323-170508-tcg-dsc-timeflash-kit2-6-boards
2323-170508-tcg-dsc-timeflash-kit2-6-boards

Part Number: DSC-TimeFlash2-Kit1

TIMEFLASH2 OSCILLATOR PROGRAMMING KIT WITH 6 SOCKET CARDS

  • Custom frequencies in seconds with immediate design verification
  • Measure current and stability
  • Supports all Microchip MEMS oscillator package sizes
  • Test features work with all oscillators in the market
  • Supports CMOS, LVPECL, LVDS and HCSL output types
  • Easy to use interface with auto software update
View Purchasing Options
Contact Us

Overview

The TimeFlash2 programmer allows users to rapidly program Microchip’s field programmable MEMS oscillator to a custom frequency in seconds, minimizing design time by enabling fast prototyping and testing. Our MEMS oscillators are available in industry standard packages that are drop-in replacements to standard crystal oscillators.

Includes socket cards in 6 different sizes:
7.0 x 5.0 mm
5.0 x 3.2 mm
3.2 x 2.5 mm
2.5 x 2.0 mm
2.0 x 1.6 mm
