Part Number: DM990101

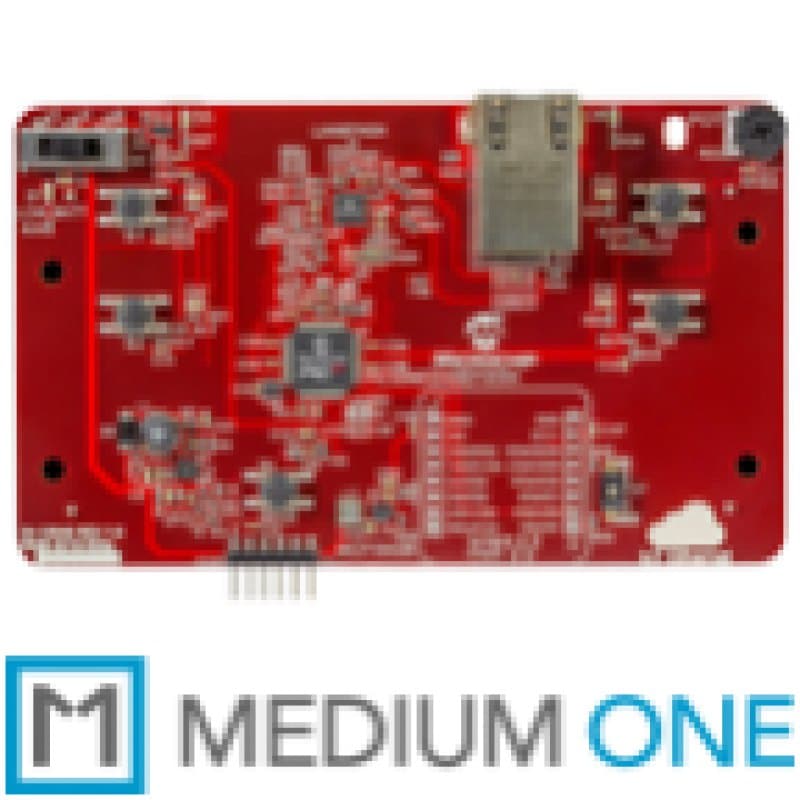

IOT ETHERNET MONITORING KIT POWERED BY MEDIUM ONE

  • Connect your IoT product to cloud and customize your applications in no time
  • Connect 100’s of sensors or your own sensor to cloud with minimum modification using the reference design
  • Leverage the PIC32MZ EF and Ethernet LAN8740A PHY to aggregate data and connect
  • Utilize production ready reliability and secure cloud connectivity and identity management over MQTT with TLS
  • Extract data intelligence from your sensor data
  • Perform data analytics with Medium One’s machine learning libraries
  • Get daily and weekly reports on your sensor data

Overview

From Sensor to Cloud. The DM990101 IoT Ethernet Monitoring kit powered by Medium One (Software-as-a-Service) offers an all-in-one IoT package. To address Industrial Internet of Things (IoT) projects, the Ethernet technology becomes the most reliable and stable connectivity. This IoT kit uses an Ethernet LAN8740A and comes pre-loaded with Medium One cloud service, mobile application (from Saritasa) as well as corresponding Microchip firmware. The firmware in the kit makes use of MPLAB®Harmony, FreeRTOS™, and WolfMQTT allowing you to quick-start your IoT design. The Ethernet port is controlled by a 32-bit micro-controller that benefits from a 2MB Flash of the PIC32MZ EF providing plenty of memory space for your application code.
The security is addressed using WolfSSL features. The kit communicates with the Medium One cloud over MQTT with TLS security, using both publish and subscribe topics. The mobile app communicates with the Medium One cloud via REST over HTTPS.
The DM990101 comes with pre-configured code to support 4 sensors : pressure, temperature/humidity, air quality and motion. In addition, 1700+ different add-on boards can be plugged into the MIKROE mikroBUS™ footprint allowing for prototyping a large variety of IoT proof-of-concepts. Sensors needs to be purchased separately on MIKROE.

Package Contents
  • IoT Ethernet Monitoring kit
  • PICkit3 in-circuit debugger
  • USB Male-A to Male Mini-B cable
  • USB Male-A to Male Micro-B cable

Medium One's IoT Ethernet Monitoring Kit

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Additional Resources

Getting Started





Examples

IoT Ethernet Monitoring kit powered by Medium One

An industrial company needs to send the data it senses in its manufacturing plant to the cloud for their executive staff to access and optimize processes. With this kit, the sensors are implemented to the MikroBus port and the kit is connected to a Medium One Cloud via the Ethernet port. The customer can now create alerts, perform analytics and visualize data in real-time.
