Part Number: DM240314

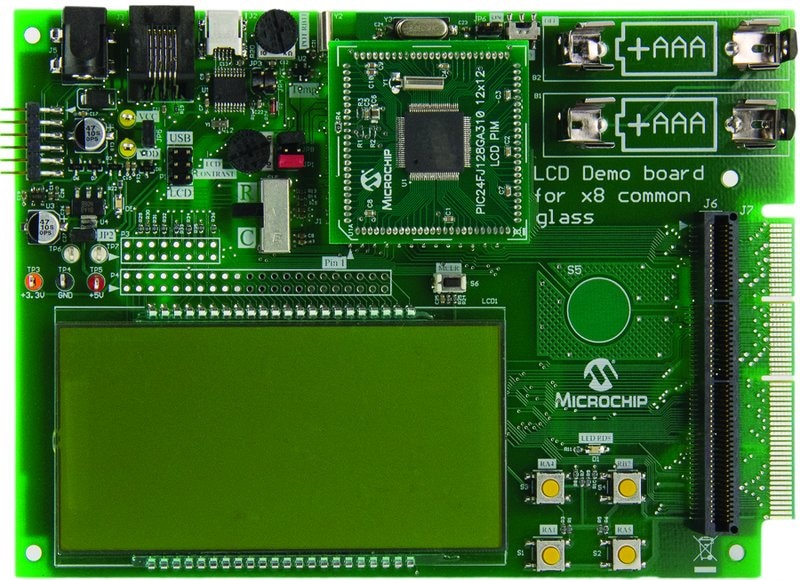

LCD EXPLORER XLP DEVELOPMENT BOARD
Supports all 100-pin LCD Processor Plug-In Modules (PIM)
- Includes 100-pin PIC24FJ128GA310 LCD PIM
96 Segment 37 Segment x 8 Common LCD Glass
Support 1/3 Biasing with:
- External resistor ladder
- Internal resistor ladder
- Charge pump biasing with capacitor
4 Buttons and 1 mTouch Capacitive Button
Analog potentiometer and temperature sensor
Power input from 9V power supply, battery or USB power source
Separate Vbat battery supply
Single UART communication channel via USB bridge
RJ11 and 6 pin PICkit™ 3 programming and debug connectors
PICtail™ Plus Vertical and Horizontal connections
- All Pins populated with many used for other functions on board
- Upper slot is open for use by end user
Overview
The LCD Explorer Development Board supports Microchip’s 100-pin Microcontrollers with x8 common Segment LCD Drivers. The LCD Explorer provides an ideal platform for a customer to evaluate a MCU with a x8 Common LCD Driver on a 38 segment x 8 common LCD display. PICtail Plus connections allow a customer to evaluate the selected MCU in a complex system by adding Microchip’s PICtail Plus daughter boards.
Package Contents
The LCD Explorer Development Board supports Microchip’s 100-pin Microcontrollers with x8 common Segment LCD Drivers. The LCD Explorer provides an ideal platform for a customer to evaluate a MCU with a x8 Common LCD Driver on a 38 segment x 8 common LCD display. PICtail Plus connections allow a customer to evaluate the selected MCU in a complex system by adding Microchip’s PICtail Plus daughter boards.
Documentation
|
Title
|
|||
|---|---|---|---|
| Introducing the LCD Explorer Demonstration Board Info Sheet | Download |
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| LCD Biasing and Contrast Control Methods | 30 Nov 2017 | Link | Application Notes |
Software
|
Title
|
Date
|
||
|---|---|---|---|
| LCD Explorer Development Board | Download | 30 Jan 2012 |
