Part Number: DM240013-2

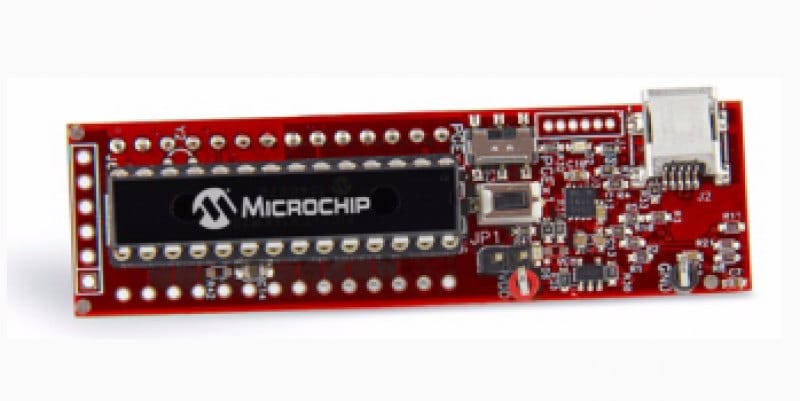

MICROSTICK FOR 5V PIC24F K-SERIES


  • Low Cost
  • Integrated Programmer / Debugger – No External Debugger Required
  • USB Powered – Ease of Use, No External Power Supply Required
  • MPLAB IDE Support
  • DUT Socket – Flexible, Easy Device Swapping
  • Works Stand-alone or Plugged into a Prototyping Board
  • Easy Access to all Device Signals for Probing
  • Easily Portable
  • On Board User LED
  • Reset Button
  • Demo Code

Overview


Microstick for 5V PIC24F K-series (Part #: DM240013-2) is a flexible USB powered development platform. It’s the perfect solution for those looking to get started with Microchip’s low cost 16-bit microcontroller families – 5V PIC24FV “KM” and “KA” – for extremely cost sensitive consumer, medical and industrial applications.

SUPPORTED PARTS:
Microstick for 5V PIC24F K-series supports the following 5V PIC24FV “KM” and “KA” devices (28-pin SPDIP package only)

  • PIC24FV16KM202 (included in package)
  • PIC24FV08KM202
  • PIC24FV16KM102
  • PIC24FV08KM102
  • PIC24FV32KA302
  • PIC24FV16KA302
Package Contents
  • Microstick for 5V PIC24F K-series Board
  • USB Cable
  • PIC24FV16KM202

Documentation


Title
Document Id
Microstick for 5V PIC24 K Series Devices Download a3a08427-aa75-4b01-835f-13bca9af08a7

Software


Title
Date
PIC24FV16KM202 Demo Download 20 Mar 2013

Additional Resources


Supported Devices

PIC24FV16KM202 (included in package)
PIC24FV08KM202
PIC24FV16KM102
PIC24FV08KM102
PIC24FV32KA302
PIC24FV16KA302
